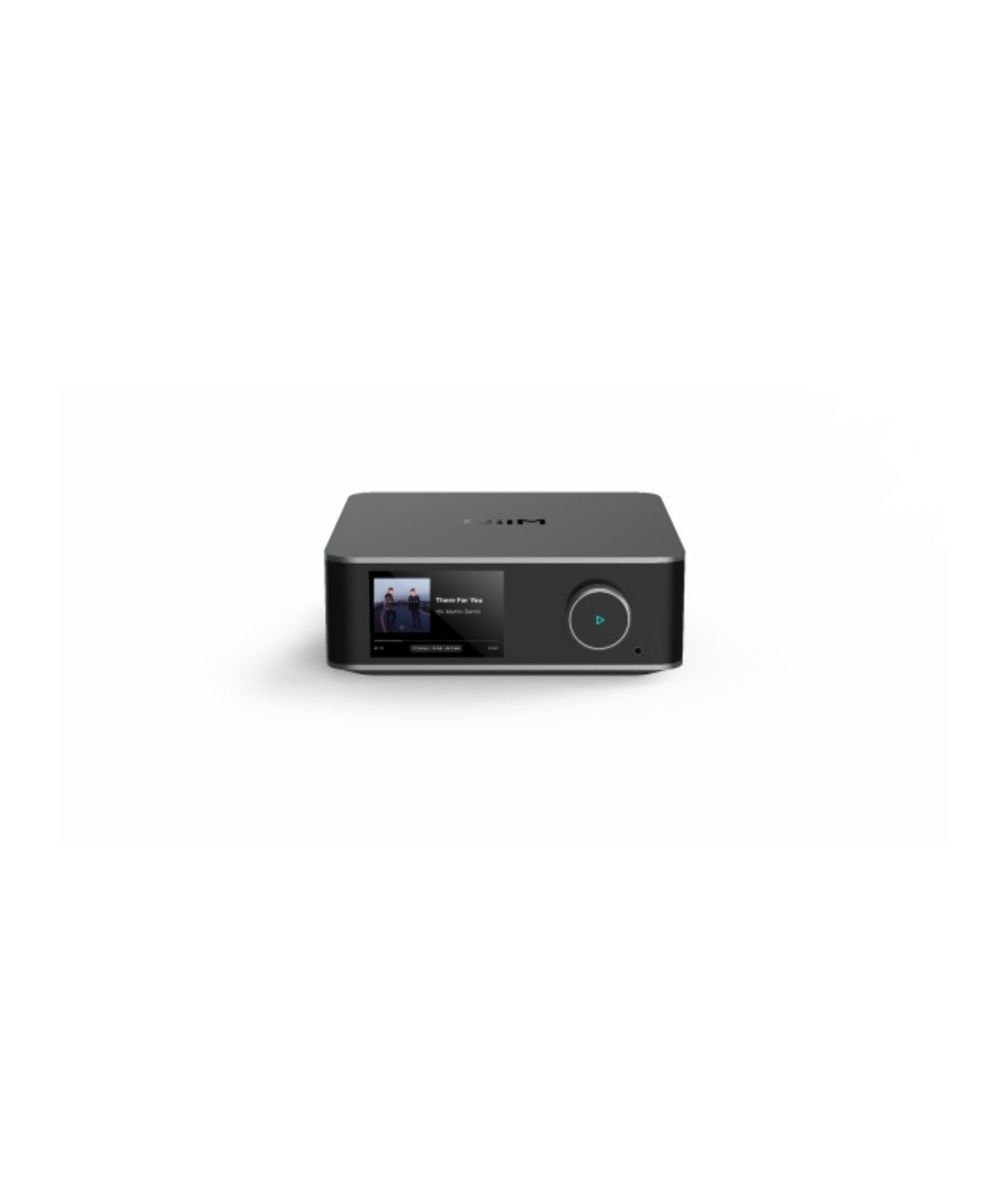

WiiM Utra

€399.00

The WiiM Ultra is WiiM’s flagship music streamer and a central digital hub for your audio ecosystem, with audiophile-grade components and build-quality alongside rich audio connections and a vibrant 3.5” full-color touchscreen. It brings Hi-Res streaming capabilities, advanced room correction, and smart home integration to your existing setup, be it powered loudspeakers or amplifiers. Beyond these, it seamlessly connects with a wide range of devices including turntables, TVs, headphones, AV receivers, subwoofers, smart speakers, Bluetooth headsets, and more, offering a comprehensive and versatile audio solution.

MUSIC STREAMER AND PREAMPLIFIER

High-performance music streamer and preamplifier for digital and analog sources.

MULTIPLE AUDIO SOURCES

Control your music and device from one user friendly WiiM Home App. Enjoy music services like Spotify, Amazon Music, Deezer, Qobuz, TIDAL, Pandora, iHeartRadio, TuneIn, SoundCloud, your own music library and more.

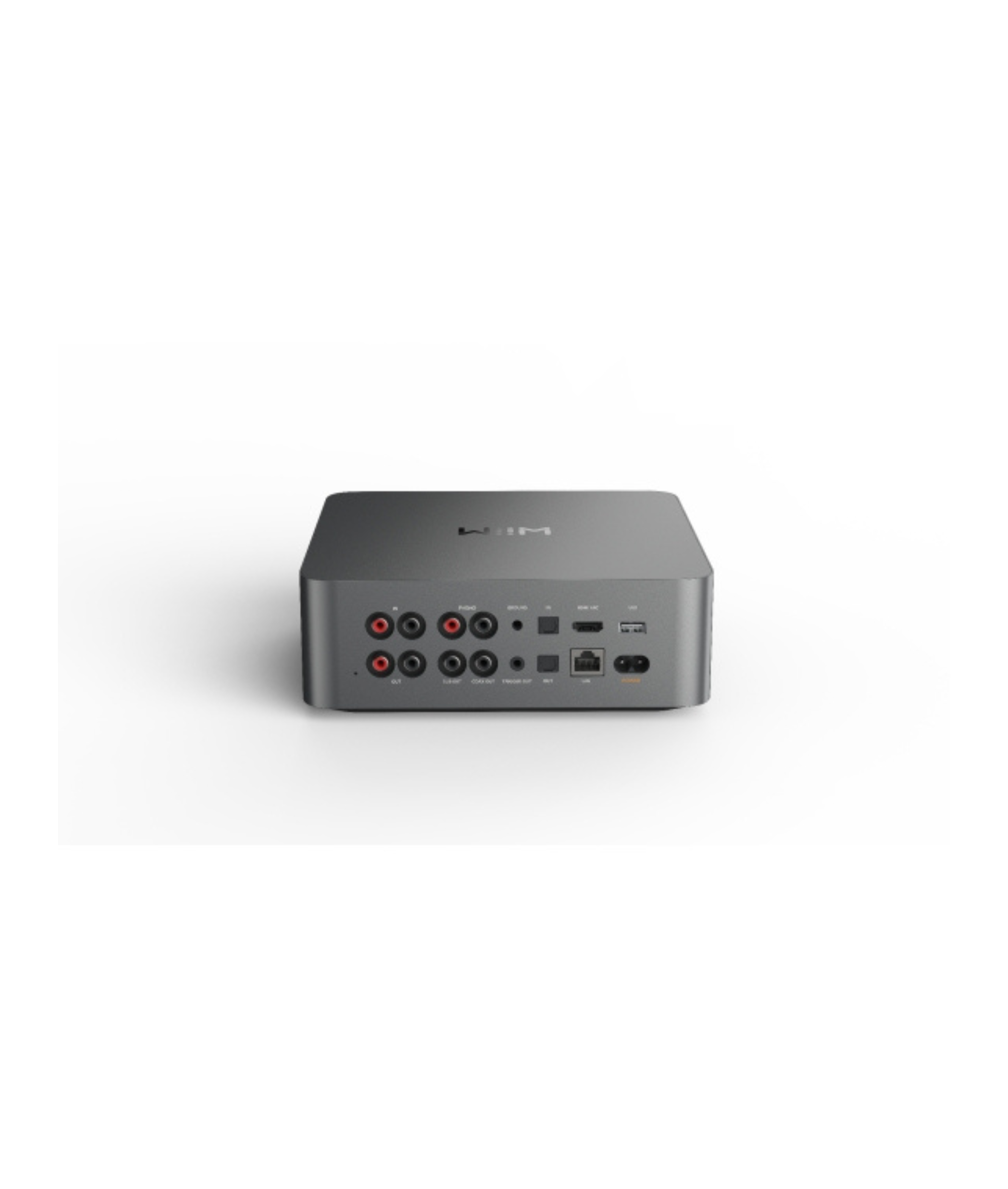

INPUTS / OUTPUTS

A rich selection of audio inputs and outputs, including

HDMI ARC, Line, Phono, and Optical Inputs, along with

Line, Optical, Coaxial, USB, Subwoofer, and dedicated

Headphone Outputs.

BROADCASTS

Stream your TV, turntable to your existing Bluetooth, Air-Play, DLNA enabled loudspeaker, or other WiiM devices.

LATEST TECHNOLOGIES

Latest Wi-Fi 6E and BT 5.3 with two antennas offering rock solid Bluetooth or Wi-Fi audio streaming.

NEW FEATURES

Enjoy new features, music services, and enhancements through regular firmware updates to provide the best audio experience.

WORKS WITH YOUR VOCAL ASSISTANTS

Works with Alexa, Google, and Siri voice assistants. Use your voice on your phone, HomePod, Echo, or Google Home devices. Control music selection, volume, and playback with voice.

REMOTE CONTROL

Upgrade your listening experience with the Alexa built-

in voice remote.

SPECIFICATIONS

Audio input

Bring your TV audio, recorder player, CD player, or another audio source into the digital world via either analog (RCA, Phono) or digital (Optical, HDMI ARC) port, up to 24-bit/192 kHz.

Audio output

Through either analog (RCA, Headphone) or digital (Coax, Optical, USB) for connecting an amplifier or loudspeaker, Up to 192 kHz/ 24-bit, varying sample rate, and bit depth based on the audio source without resampling via Line out, Headphone, USB Coax, and

Optical SPDIF.

Line out

Maximum output : 2.1V RMS

SNR : 121 dB (A-wt)

THD+N (1 kHz): 0.00018% (-115 dqB) for 44.1k to 192k FR curve : ± 0.05 dB

EQ Tailor your audio experience with versatile and independent EQ settings for each input source – be it HDMI, Optical, Line, BT, or Network. Access a robust suite of sound customization options, including 24 preset EQ settings, a 10-band graphic EQ, and an 10-band parametric EQ for precise sound adjustments.

Subwoofer output

Comprehensive bass management. Adjustable crossover frequency, level, phase, and

latency.

DIMENSIONS / WEIGHT

Dimensions

L205 × H205 × P73 mm

Connectivity and power

100-240V AC input.

Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.

Bluetooth 5.3 with BLE and BT LE Audio, supports. both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote. Ethernet, 10M/100 Mbps. USB Host for Storage – Access personal media library and use it as a media server for other WiiM

and DLNA devices.

12 V Trigger

Automatically turns on your stereo receiver or amplifier.

LED 4 Color RGBW LED indicates the device status

Glass-covered 3.5” vibrant touchscreen display

Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings. Guides users through the Out-of-Box Experience and firmware updates.

Provides feedback when there’s a change in the play mode.

Allows users to customize the wallpaper and dis-play the time and date during standby mode.

Volume knob

Adjust volume and play/pause button.

Weight

1,3 kg
