All electronic components are through hole type of the highest quality silver soldered by hand.
Reference amplifier utilizes our top of the line 16 layer handmade output transformers with high quality copper wire and core material for superior sound quality.

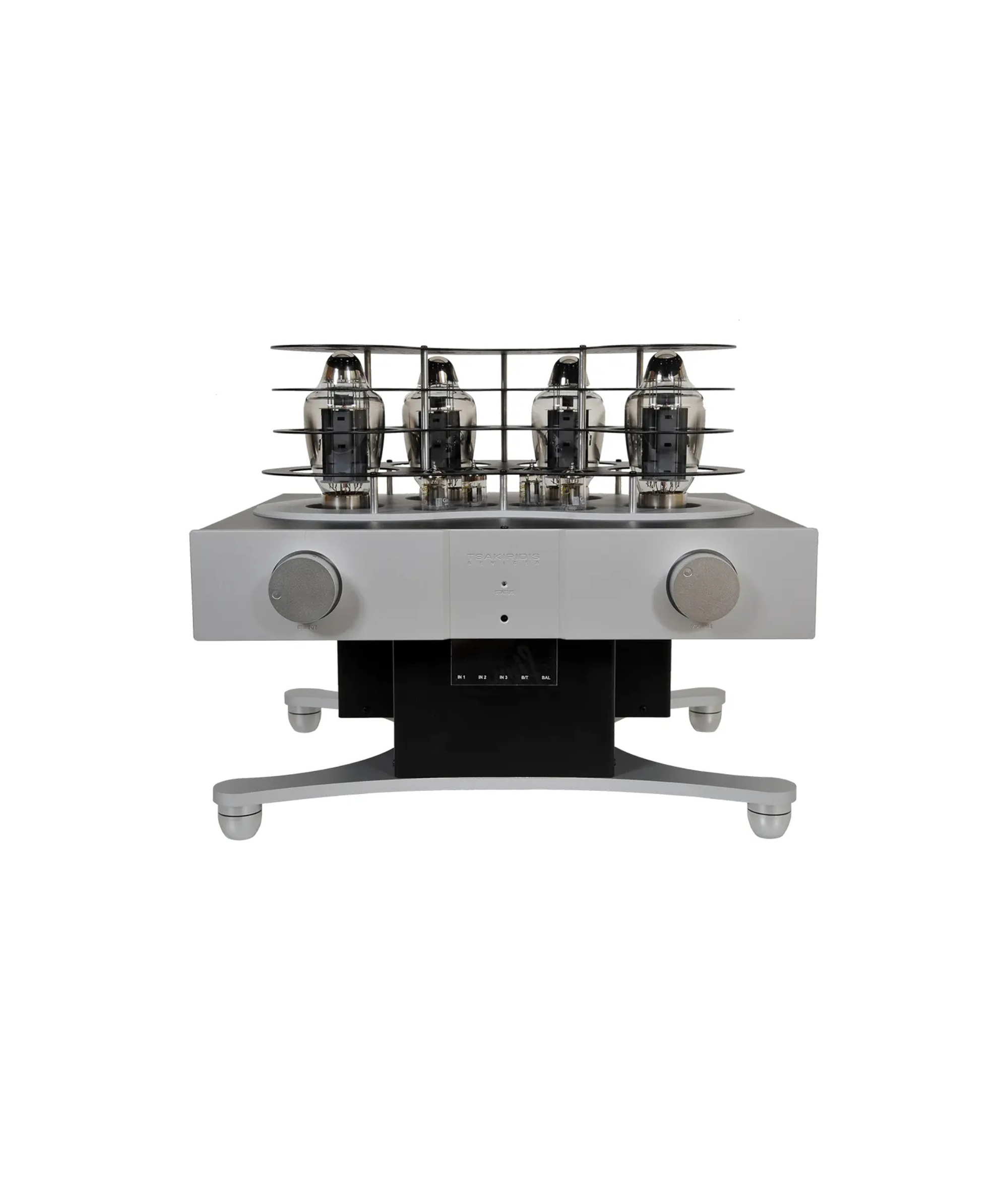

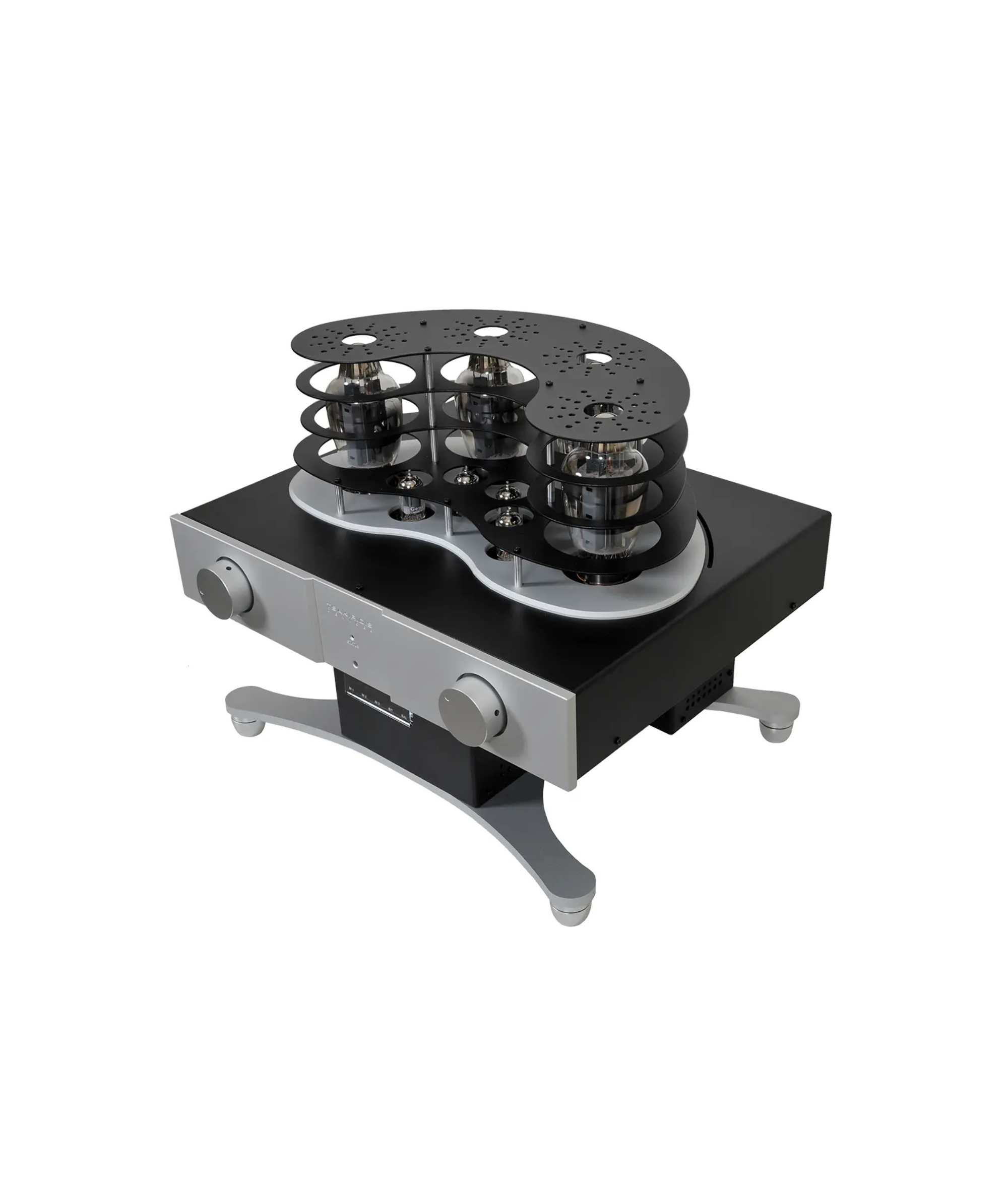

Utilizing two KT170 tubes, Reference amplifier can deliver up to 100W of power per channel, allowing it to drive any loudspeaker efficiently. Very high quality electronic components are implemented to achieve superior high-end sound quality. Low tolerance, high frequency, non-inductive, ultra low noise resistors are used in all stages. Mundorf Supreme Silver Gold Oil capacitors are used for the signal. Self biasing configuration with chassis mount non-inductive low tolerance heatsink resistors. Premium quality signal tubes.

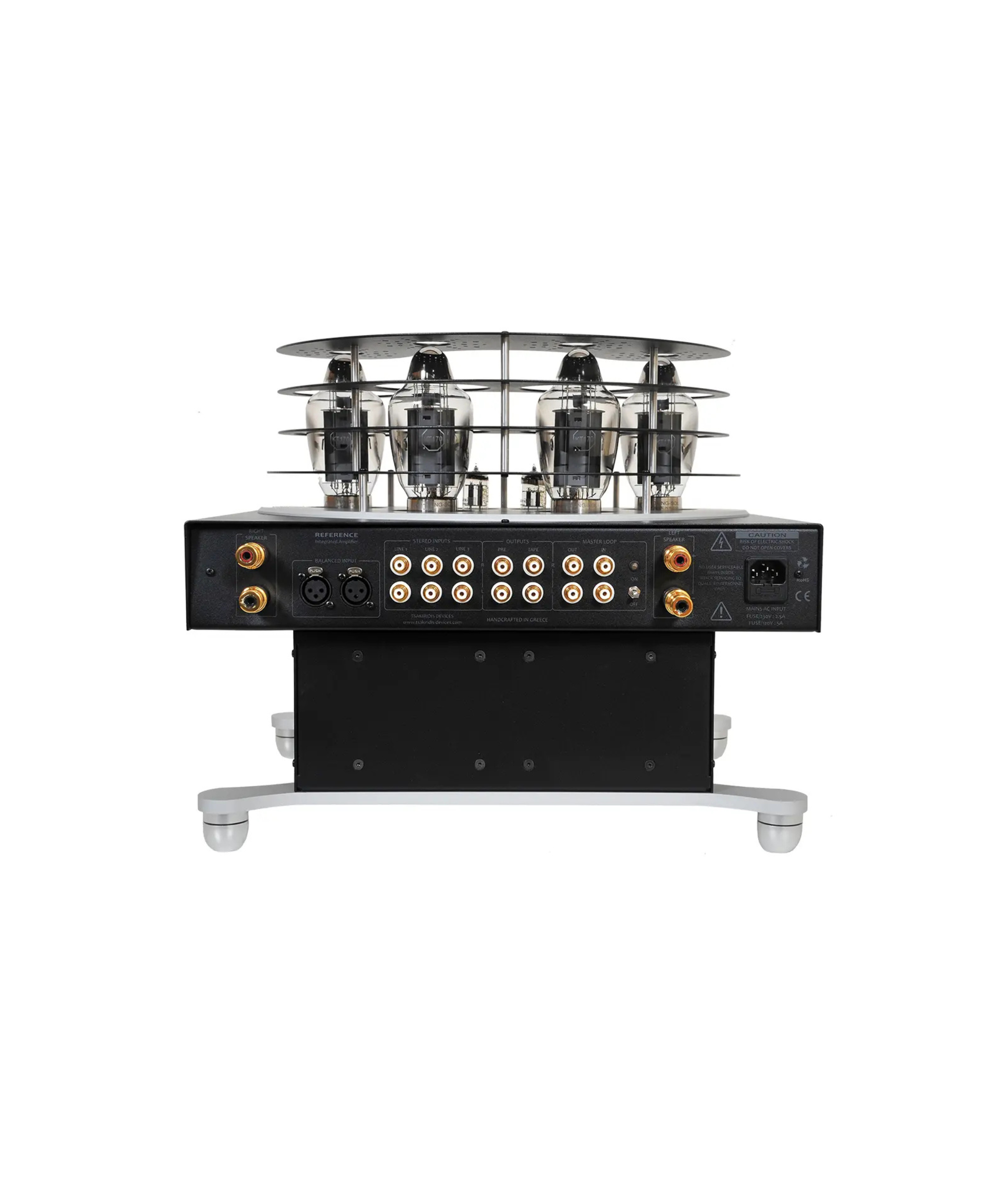

Gold plated RCA and XLR connectors for the inputs/outputs. WBT-0710 Next Gen loudspeaker binding posts.
An elegant remote control in aluminum case offers you control over all the functions of Reference integrated amplifier. Volume control, input selection, mute, LED illumination level and stand by mode.
Reference amplifier provides a high quality Bluetooth audio input to stream your favorite music from your smartphone. A balanced input and three single ended line inputs.
A master loop allows you to connect an external circuit such as room correction, equalizer etc. For the volume control the classic blue Alps is utilized.
An elegant remote control in aluminum case offers you control over all the functions of Reference integrated amplifier. Volume control, input selection, mute, LED illumination level and stand by mode.
Reference amplifier provides a high quality Bluetooth audio input to stream your favorite music from your smartphone. A balanced input and three single ended line inputs.
A master loop allows you to connect an external circuit such as room correction, equalizer etc. For the volume control the classic blue Alps is utilized.
Inputs: 3 single ended line inputs, 1 XLR balanced
Outputs: 1 pre output, 1 tape output
Other connections: Master loop
Wireless connections: Bluetooth v5.0 audio receiver
Input selection: High grade signal relays
Input/Output connectors: RCA, XLR gold plated
Speaker connectors: WBT-0710 Next Gen
Remote control: Yes
Volume control: Blue Alps
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Mundorf Supreme Silver Gold Oil capacitors
Power resistors: Metal film 1% tolerance low noise non-indictive
Low power resistors: Metal film 1% tolerance
Power transformer: Handmade 400W
Output transformer: Handmade 16 layer 6N copper high quality core
Driving stage tubes: Premium quality 4x12AT7
Power tubes: 4xKT170
Output Power: 2x100W
Input impedance: 47 kOhm
Output impedance: 6 Ohm
Input sensitivity: 350mV
Signal to Noise Ratio (SNR): 89db
Channel separation: 78db
Rise time: 3us @ 10kHz
Harmonic distortion: 10W @ 1kHz 0.30%
Frequency response: -3db 2Hz-87000Hz
Power supply energy: 250Joule
Power consumption: 290W
Weight: 27kgr
Dimensions (WxDxH): (41x36x38)cm
