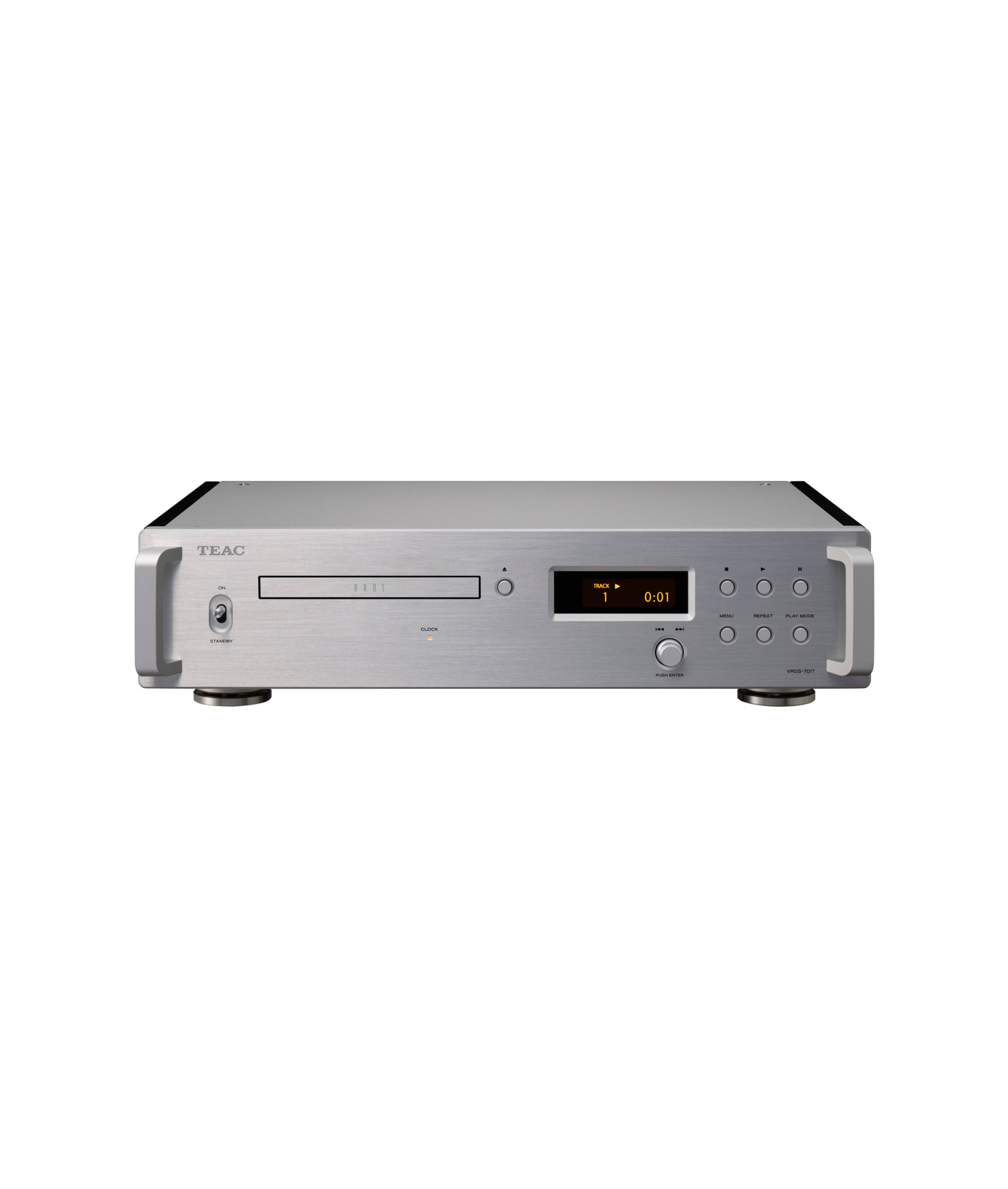

The VRDS-701T is a commemorative CD transport model that celebrates TEAC’s 70th anniversary. Utilizing our newly-developed VRDS mechanism, it can maximize the true capabilities of a system when used in combination with a DAC.
The VRDS-701T CD transport utilizes our newly-developed VRDS mechanism.
The VRDS is a TEAC-original CD drive mechanism that reduces rotation vibration and other unwanted vibration by clamping the CD to an aluminum turntable with the same diameter in order to maximize inertial mass.
Used in combination with a UD-701N, which is part of the same series, playback is possible
using the discrete DAC in the UD-701N as well as with MQA full decoding.
Of course, you can also use it together with a DAC of your choosing, and build a system as you like.
The inclusion of a 10MHz clock input enables flexible integration
with systems that are synchronized using an external clock.
CD section Supported mediaAudio CD, CD (CD-R/CD-RW) * 8cm CDs not supported.

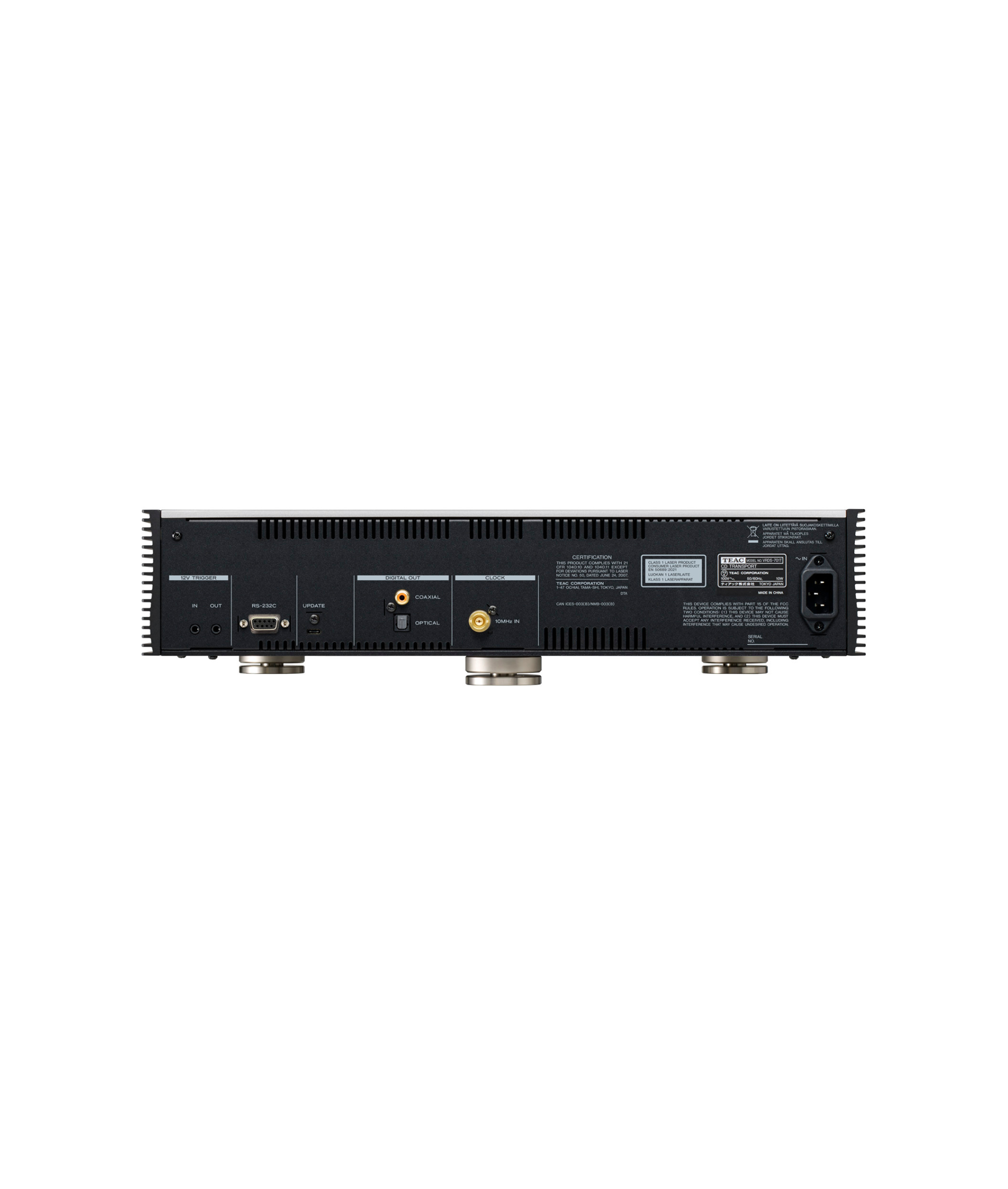

Digital audio outputs COAXIAL ConnectorRCA × 1Output level0.5Vp-pOutput impedance75Ω
OPTICAL ConnectorTOS (JEITA RC5720C) × 1
Clock sync input ConnectorBNC × 1Input frequency10MHzInput impedance50ΩInput level Rectangle waveEquivalent to TTL levelSine wave0.5 to 1.0Vrms
External control Trigger in (12V TRIGGER IN) Connector3.5mm Mono mini jack × 1Input level12V, 1mA
Trigger out (12V TRIGGER THRU) Connector3.5mm Mono mini jack × 1Output level12VMaximum curret supply100mA
PowerAC120V, 60Hz
AC220-240V, 50/60Hz
Power consumption10W
Standby power0.4W
Overall dimensions444 (W) × 111 (H) × 333 (D) mm (including protrusions)
Weight10.1kg
Operating temperature+5℃ to +35℃
Operating humidity5％ to 85％ (no condensation)
Storage Temperature range−20℃ to +55℃
Included accessories AC cord, Remote control (RC-1338), Foot pads × 3, Owner's manual
