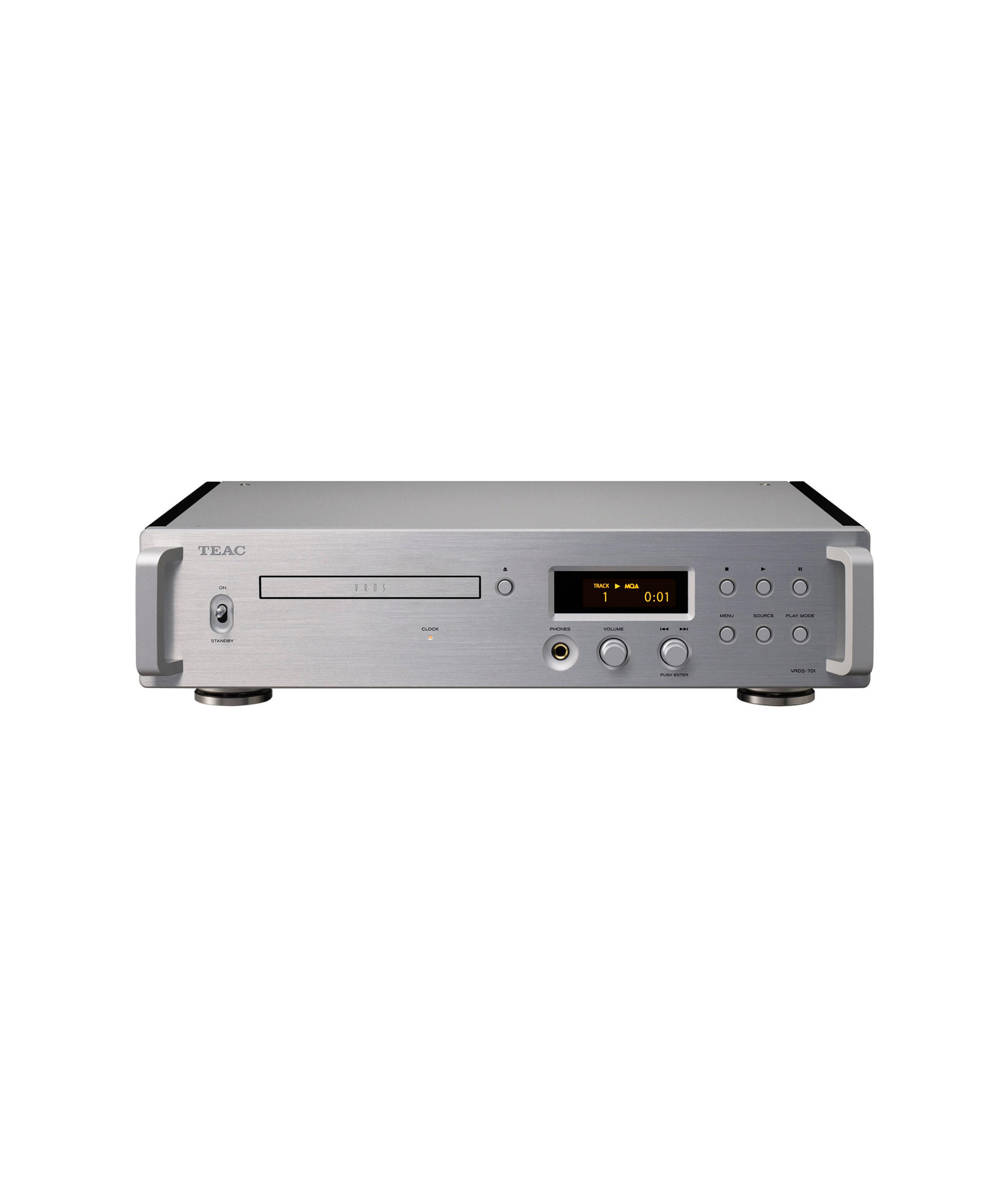

TEAC VRDS-701

€2,999.00

Commemorating the 70th anniversary of our founding, this model brings innovation and epitomizes TEAC strengths, including a newly-developed VRDS mechanism.

The VRDS-701 CD player employs a newly-developed VRDS mechanism and a TEAC original discrete DAC. The VRDS is a TEAC-original CD drive mechanism that reduces rotation vibration and other unwanted vibration by clamping the CD to an aluminum turntable with the same diameter in order to maximize inertial mass.

Furthermore, instead of an ordinary DAC IC for the DAC section, which is crucial to audio quality, the VRDS-701 has a TEAC ΔΣ (delta-sigma) discrete DAC that incorporates our unique algorithms in a discrete circuit.

Unconstrained by conventional CD player definitions, the VRDS-701 is enhanced with future-forward functionality. The ability to play MQA CDs using full MQA decoding capabilities and support for 22.5MHz DSD and 384kHz/32-bit PCM formats as a USB DAC are some of the features that make it more than just a CD player.

Spec description

CD section Supported mediaAudio CD, CD (CD-R/CD-RW) * 8cm CDs not supported.

Frequencey response5Hz to 80kHz (+1dB, –6dB)S/N ratio108dB (A-weight, 1kHz)

Total harmonic distortion0.002% (1kHz, LPF: 20Hz to 20kHz)

Analog audio outputs Balanced ConnectorsXLR × 1 pairMaximum output level2.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED 0dB) 4.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED +6dB)
12Vrms (1kHz, Full scale, 10kΩ loaded, VARIABLE)Output impedance220Ω

Unbalanced ConnectorsRCA × 1 pairMaximum output level2.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED 0dB) 4.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED +6dB) 6Vrms (1kHz, Full scale, 10kΩ loaded, VRIABLE)Output impedance180Ω

Digital audio inputs USB ConnectorUSB Type-C × 1 (USB2.0 or more)Supported formats PCM16 / 24 / 32bit 44.1k / 48k / 88.2k / 96k / 176.4k / 192k / 352.8k / 384kHzDSD2.8M / 5.6M / 11.2M / 22.5MHz

COAXIAL ConnectorRCA × 1Input level0.5Vp-pInput impedance75ΩSupported formats PCM16 / 24bit 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHzDSD2.8MHzOPTICAL ConnectorTOS (JEITA RC5720C) × 1Input level–24.0 to –14.5dBm peakSupported formats PCM16 / 24bit 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHzDSD2.8MHz

Digital audio outputs COAXIAL ConnectorRCA × 1Output level0.5Vp-pOutput impedance75Ω

OPTICAL ConnectorTOS (JEITA RC5720C) × 1

Headphones out Connector¼″ (6.3mm) Stereo jack × 1

Maximum output500mW + 500mW (into 32Ω)

Clock sync input ConnectorBNC × 1Input frequency10MHzInput impedance50ΩInput level Rectangle waveEquivalent to TTL levelSine wave0.5 to 1.0Vrms

External control Trigger in (12V TRIGGER IN) Connector3.5mm Mono mini jack × 1Input level12V, 1mA

Trigger out (12V TRIGGER THRU) Connector3.5mm Mono mini jack × 1Output level12VMaximum curret supply100mA

PowerAC120V, 60Hz AC220-240V, 50/60Hz

Power consumption20WStandby power0.4W

Overall dimensions444 (W) × 111 (H) × 333 (D) mm (including protrusions)

Weight11.1kg

Operating temperature+5℃ to +35℃

Operating humidity5% to 85% (no condensation)

Storage Temperature range−20℃ to +55℃

Included accessories AC cord, Remote control (RC-1338), Foot pads × 3, Owner's manual
