An Authentic Belt Drive Analog Turntable with XLR Balanced Output

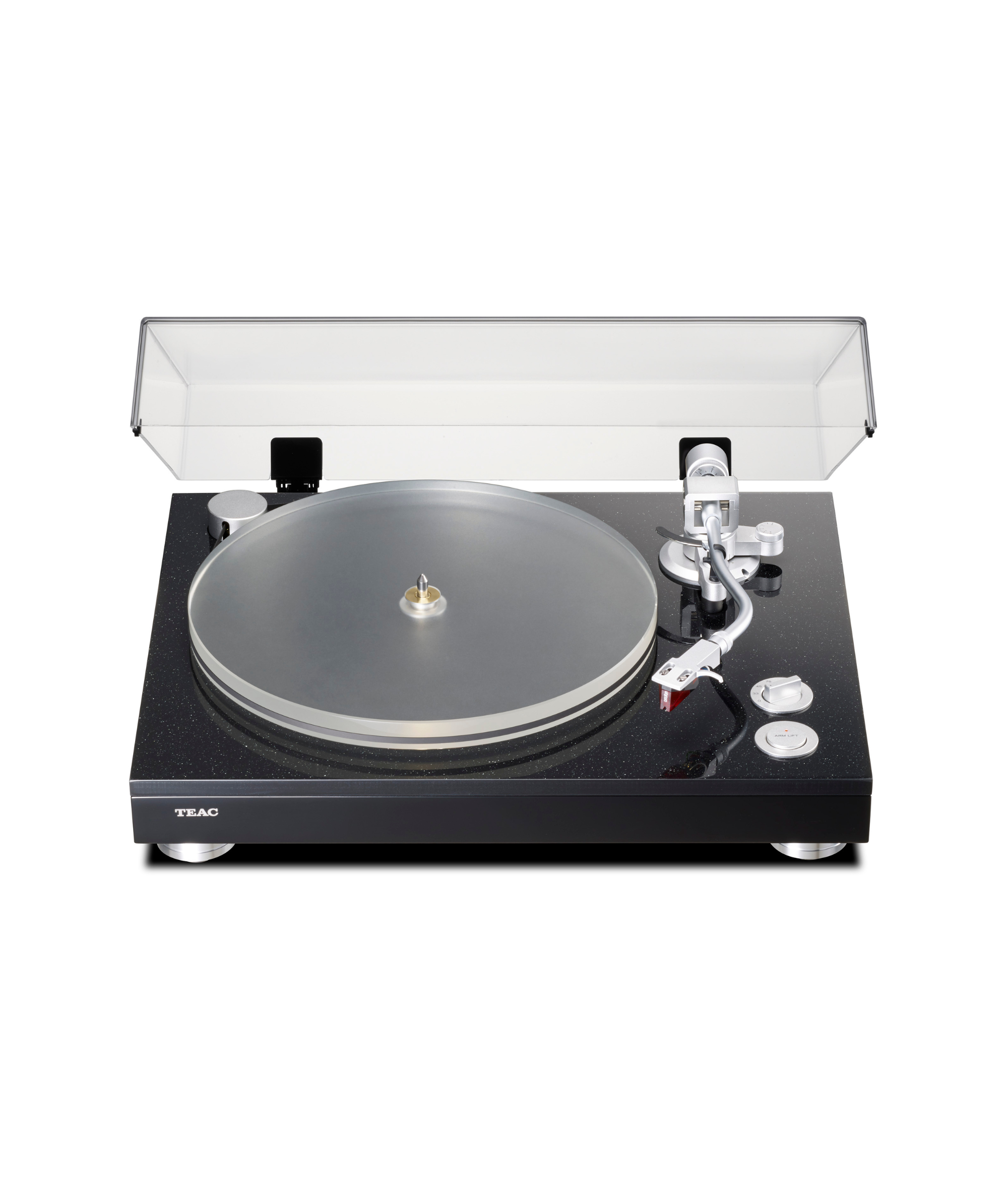

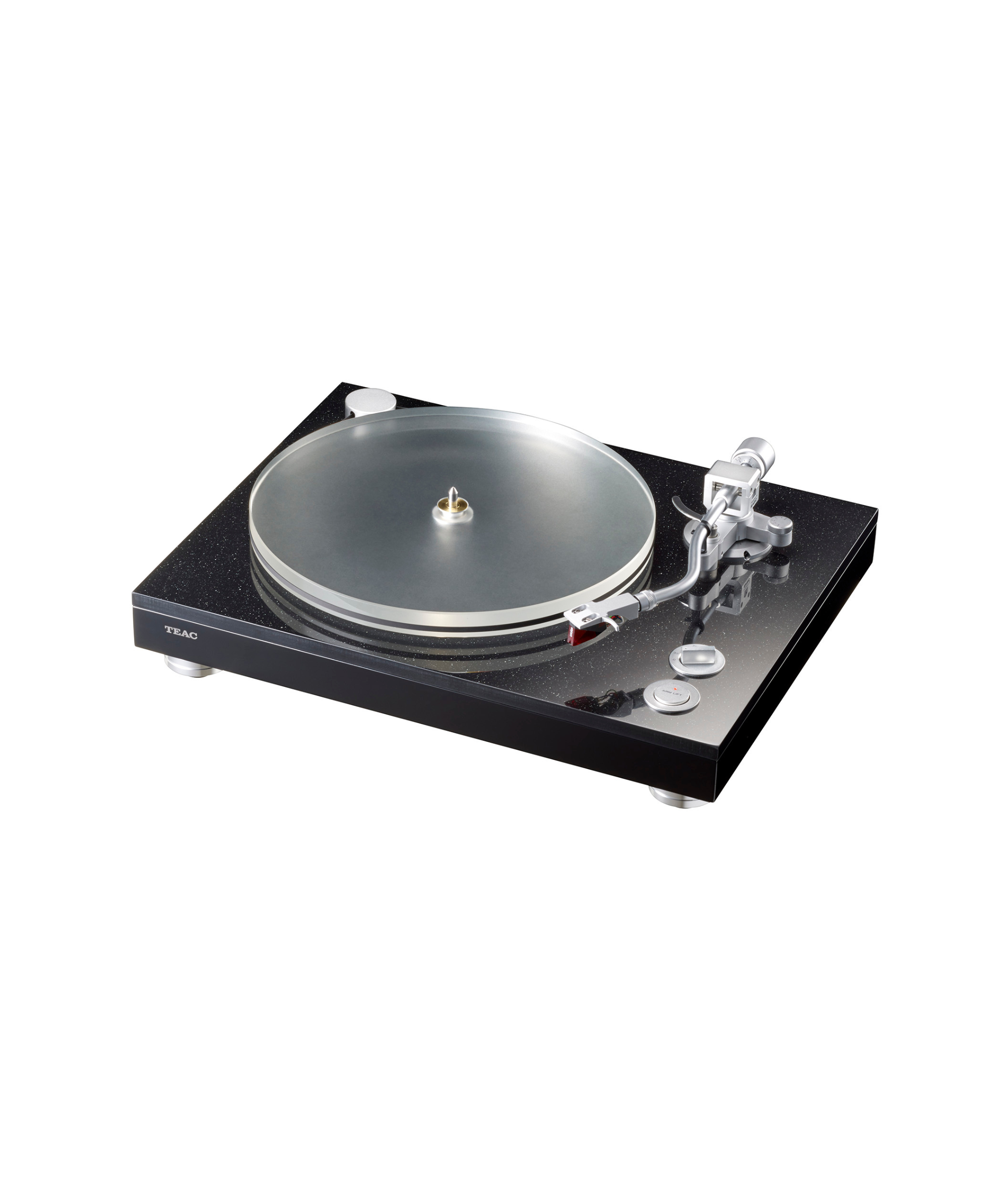

his analog turntable, which supports MC balanced output, features a hybrid chassis that combines synthetic marble, washi paper and MDF materials along with a 9-inch S-shaped universal arm that utilizes a knife-edge bearing.
Turntables are the stages for drawing out the passion of the artists and the magic of their engineers that have been infused into records. With jet black synthetic marble and MDF finished in piano black, the TN-5BB is a truly worthy stage that achieves both functional suppression of unwanted vibrations as well a stately and modern design.
Using the built-in XLR jacks to team up with a phono amplifier that supports balanced connection, the slightest signals transmitted by the cartridge can be re-created with even greater intensity.
The knife-edge tone arm, which is an SAEC×TEAC collaboration, is another component that further enhances this musical stage. The 20mm thick acrylic platter is driven by our original Platter Rotation Sensing Servo System (PRS3).
Are you ready to experience the sound the artists and engineers really wanted you to hear?
Turntable section Drive system Rotation-detection-type high-precision control belt drive MotorDC motorRotation speed33-⅓rpm, 45rpm, 78prm Wow and flutter0.1% or less Platter Acrylic, 30cm diameter Tonearm section Arm typeStatic-balanced S-shaped tone armEffective arm length223mm
Suitable cartridge weight3.0 to 12.0g (14 to 23 g including head-shell)Overhang18mmArm height adjustment rangeapprox. 6mmCartridge section TypeMMOutput voltage5.5 mV (1kHz, 5cm/s)Tracking force1.8gCartridge weight7.2g
Included head-shell weight:11g (including screws, nuts and wires)Replacement record stylus modelOrtofon 2M Red • Stylus lifespan depends on use conditions but is usually about 1000 hours.

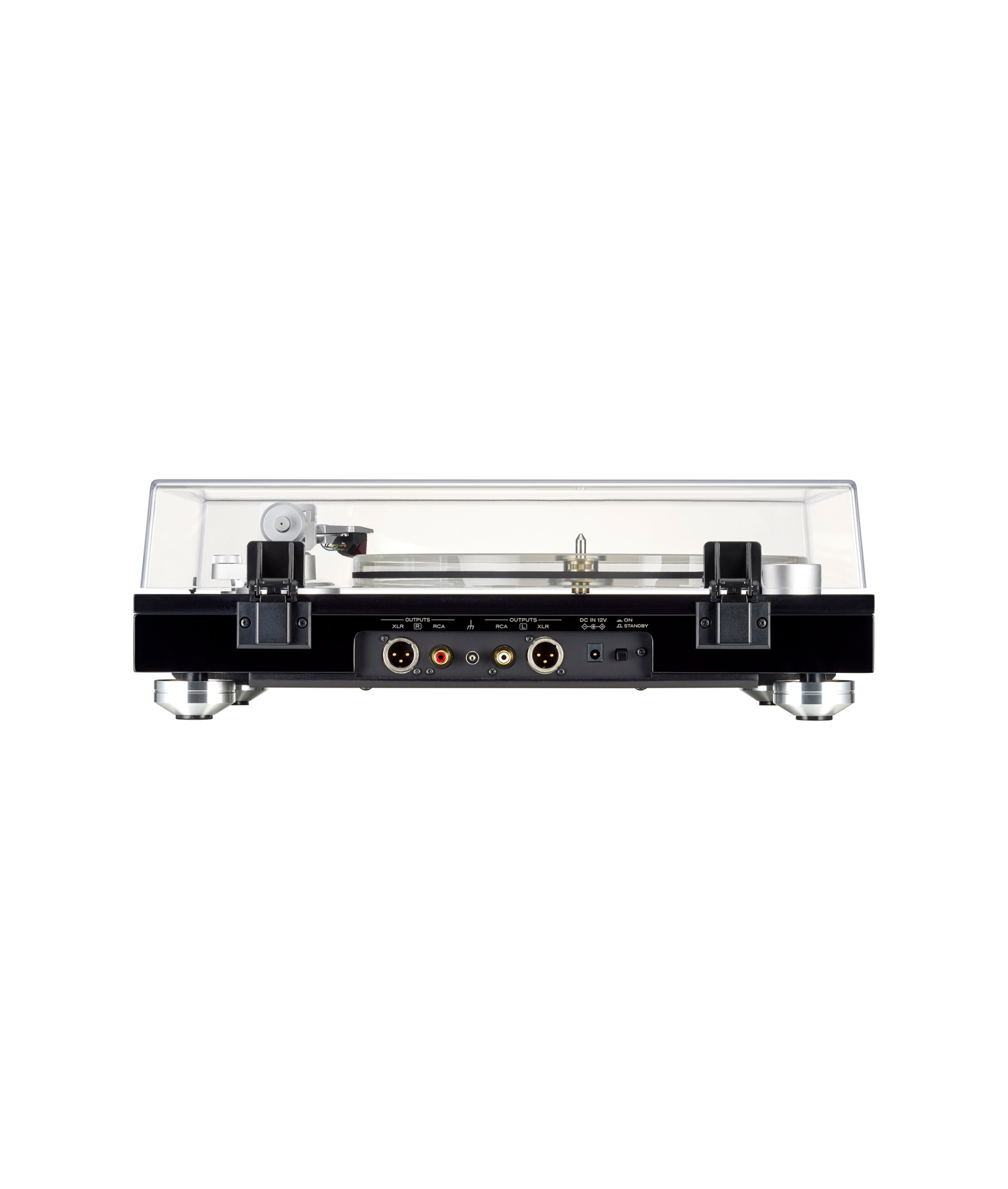

Phono Outputs Balanced ConnectorXLR × 1 pairUnbalanced ConnectorRCA × 1 pairPowerAC 100 to 240V, 50/60Hz (AC Adapter)
Power Consumption2.0W or less (0.3W at Standby)
Overall Dimensions (W×H×D)450 × 148 × 351 mm / 17.1" × 5.8" × 13.8" (with dust cover closed)
450 × 420 × 410 mm / 17.1" × 16.5" × 16.1" (with dust cover open)
450 × 135 × 351 mm / 17.1" × 5.3" × 13.8" (with dust cover removed)
Including protrusions (when arm holder at the highest position)
Weightapprox. 10.5kg / 23.2 lbs.Included accessories45RPM adapter × 1, Counter Weight × 1, Head-shell (Ortofon 2M Red installed) × 1, Platter × 1, Flat Belt × 1, Pulley Cover × 1, Dust Cover × 1, Hinge × 2, Foot height adjustment washers × 4, Arm height adjustment hex wrench × 1, RCA Audio Cable × 1, Ground wire × 1, AC Adapter (GPE018S-120100-Z) × 1, Cartridge Alignment Gauge × 1, User Manual × 1
