Phono equalizing amplifier with dual monaural and fully-balanced input/output circuit design.

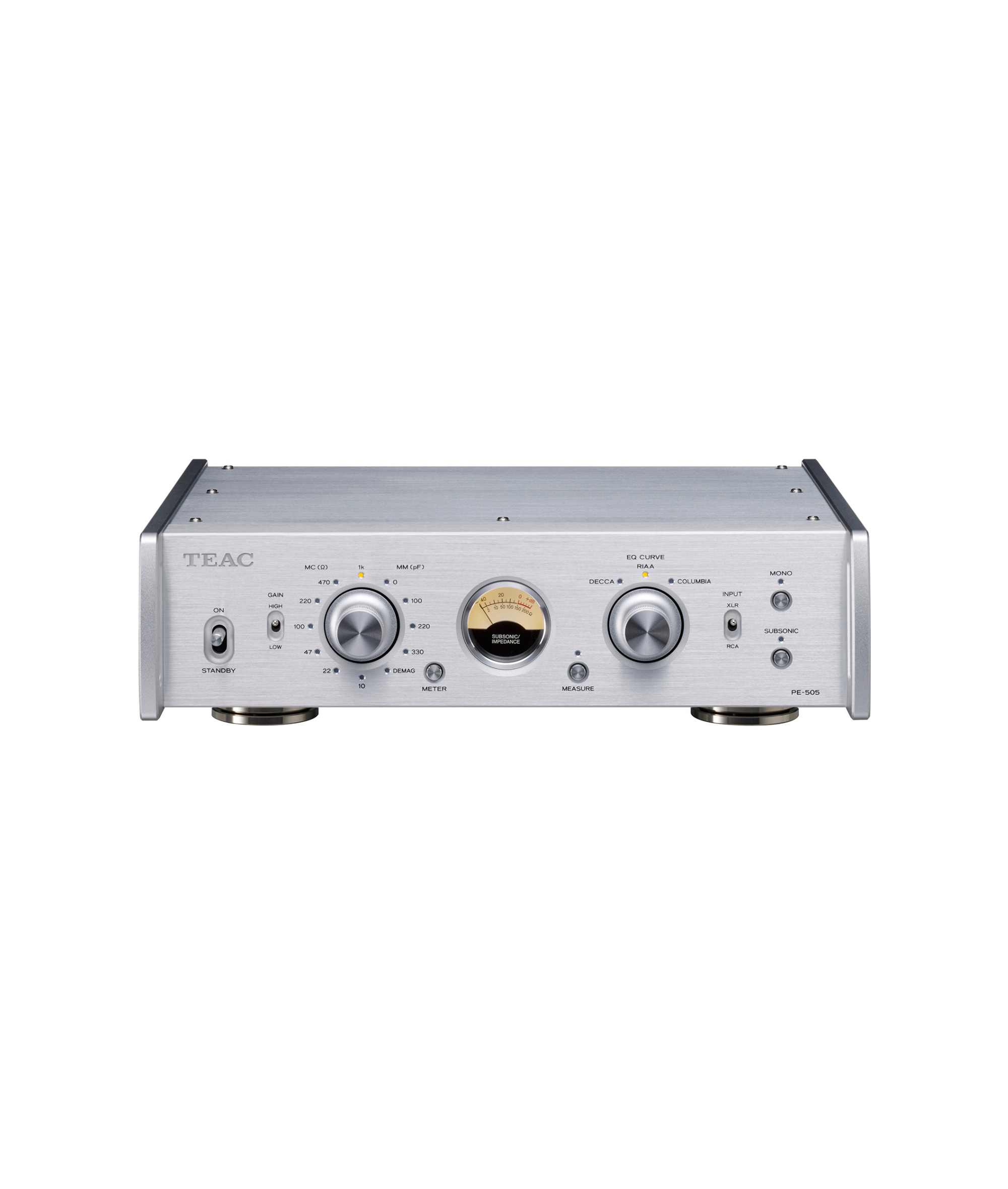

The PE-505 is a phono equalizing amplifier with dual monaural and fully-balanced input/output circuits that support balanced MC input.
The development of the PE-505 was achieved by relying on TEAC’s audio technology expertise, focusing on recording and playback, with the goal of accurately reproducing the original intent of the recording producers. The PE-505 will amplify even very faint audio signals picked up by the cartridge, process them without coloration, and then deliver them faithfully in order to keep the listener as close as possible to the original sound that was played before it was engraved on the master disc.
The high precision RIAA correction circuit, as well as both DECCA and COLUMBIA curves are supported. In addition, selectable load resistance for MC cartridges and load capacity for MM cartridges are present; allowing users to optimize the settings for the type of cartridge used and for the condition of the record.
Amplifier section Total harmonic distortion(Rated output, 1kHz, GAIN Low) RCA input (MM)0.002% RCA input (MC)0.02% XLR input (MC)0.02%Residual noise volt(Input short, GAIN low, IHF-A) RCA input (MM)10μV RCA input (MC)65μV XLR input (MC)85μVS/N ratio(Input short, Rated input, GAIN Low, IHF-A) RCA input (MM)106dB XLR input (MC)86dBRIAA deviation (20Hz to 20kHz)±0.05dB
Channel separation−90dB or higher (MM, 10kHz, GAIN Low)Gain GAIN LOW RCA input (MM)34dB RCA input (MC)54dB XLR input (MC)54dBGAIN HIGH RCA input (MM)46dB RCA input (MC)66dB XLR input (MC)66dBSubsonic filter17Hz, –24dB/octavePhono input section Unbalanced inputRCA Pin (MC/MM compatible) × 1 pairMax input level150mV (MM, THD 0.1%, GAIN Low)
16mV (MC, THD 0.1%, GAIN Low)Input impedance* MM47kΩ, Load-impedance: 0, 100, 220, 330pFMC10, 22, 47, 100, 220, 470, 1kΩ

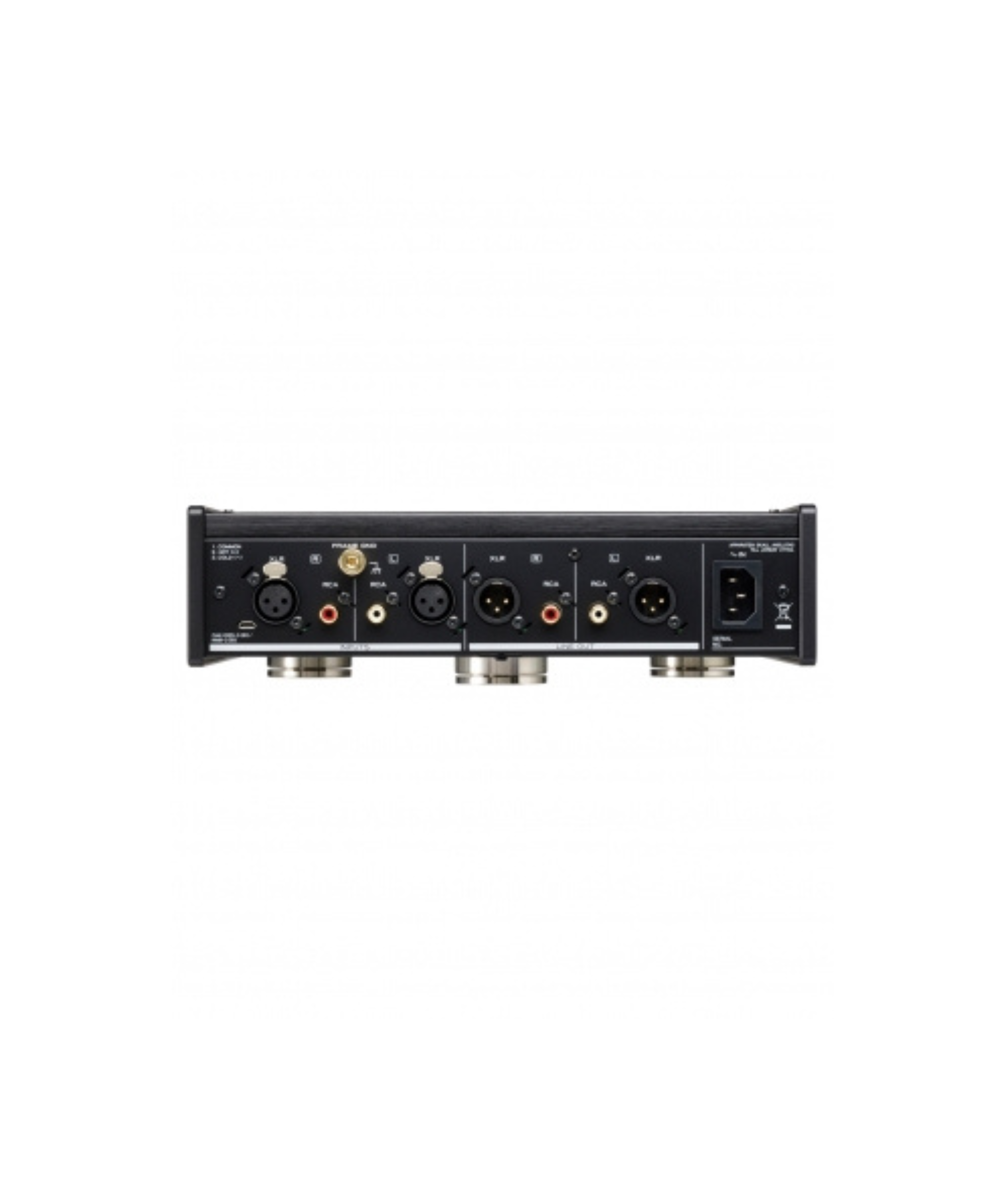

Balanced inputXLR (MC only) × 1 pair Max input level16mV (MC, THD 0.1%, GAIN Low)Input impedance* MC10, 22, 47, 100, 220, 470, 1kΩ * switchable from the SettingsAnalog output section Unbalanced outputRCA pin × 1 pairRated output level2VrmsOutput impedance63ΩBalanced outputXLR × 1 pairRated output level4VrmsOutput impedance126Ω Power supply AC220V, 60Hz
AC220 - 240V, 50/60Hz
Power consumption14W
Overall dimensions(W × H × D)290 × 84.5 × 252.5 mm / 11.4" × 3.3" × 9.9"
Weight4.5kg / 10.0 lbs.
Included accessoriesPower cord × 1, Cushions for foot × 3, Owner’s manual × 1
