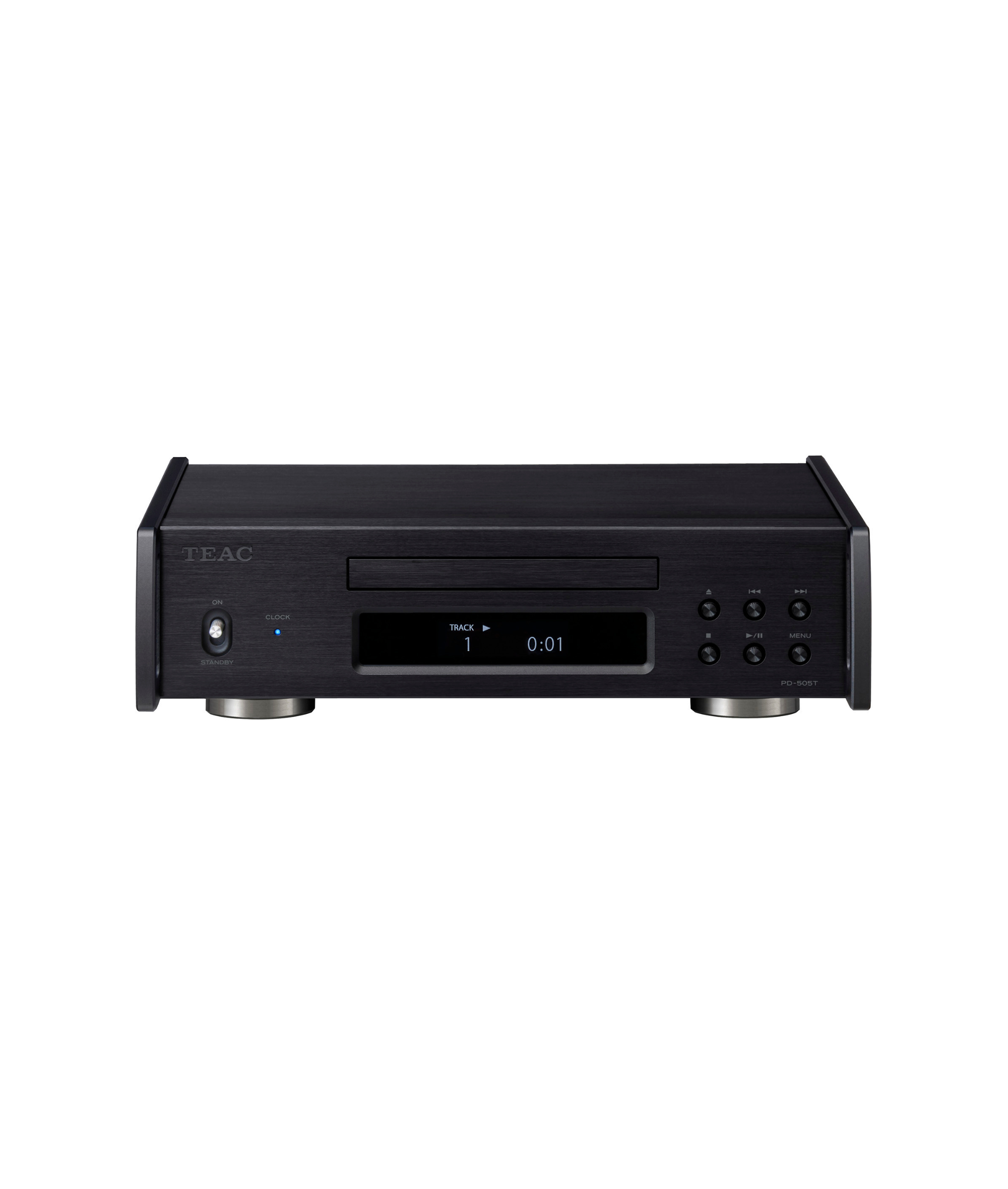

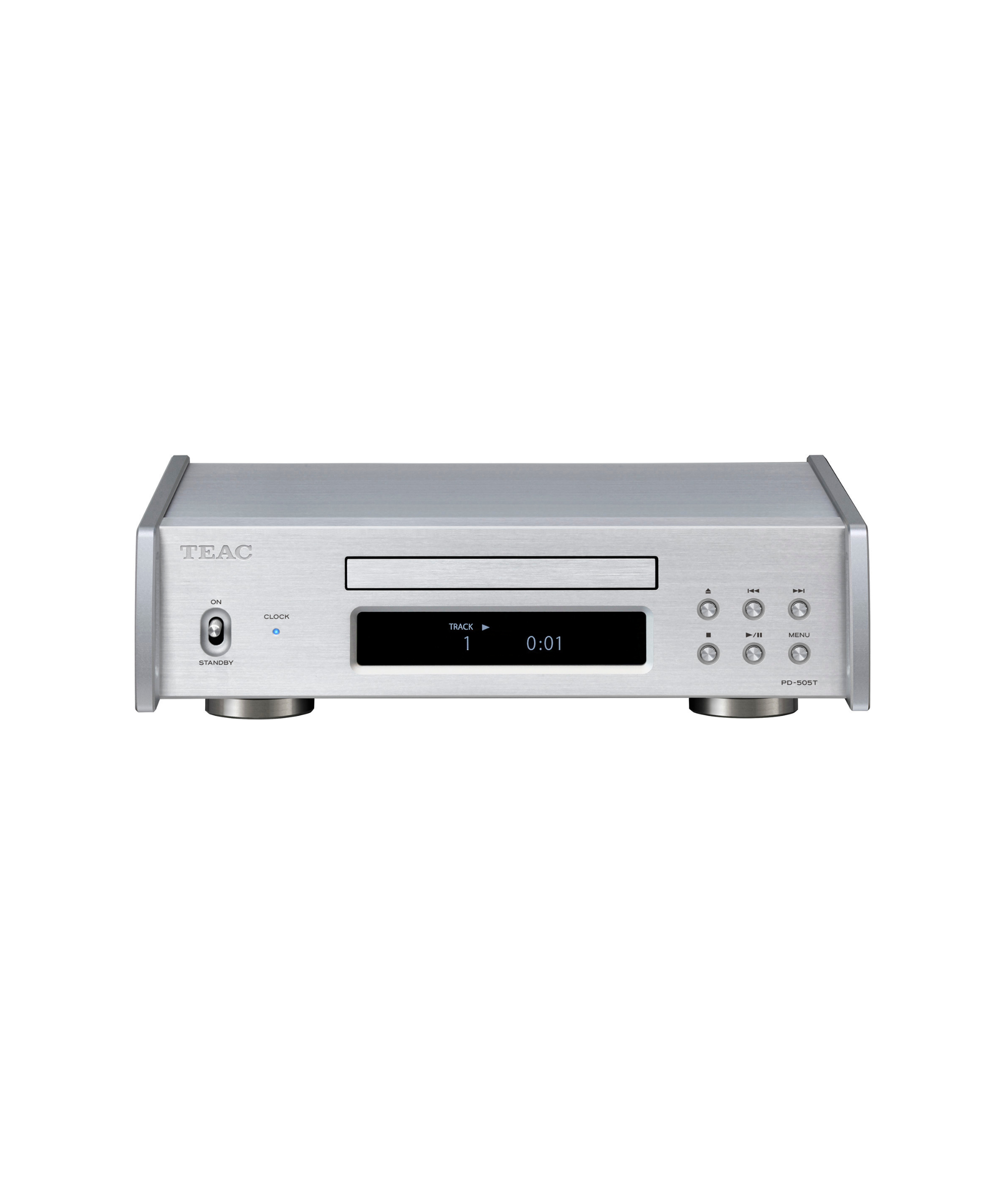

This long-awaited CD transport in the Reference 500 Series employs a CD drive with a new design based on specifications we have used for professional products.
Based on our original CD drive design used in the CD-5020A, which boasts a record
for many years of use by professional products, we developed a new design optimized for the PD-505T.
Utilizing semi-floating mounting and a new drive circuit design, we have realized CD reading
that is accurate and maintains a high level of purity.
With support for 10MHz clock input, not only can this transport be used together
with a TEAC Reference 500 Series DAC, it can also be used flexibly to enable
high-quality audio CD playback with a variety of digital playback systems.
CD section Supported mediaAudio CD (CD-R/CD-RW supported)
Digital audio putputs COAXIAL ConnectorRCA (gold-plated) × 1Output level0.5Vp-pOutput impedance75Ω
OPTICAL ConnectorTOS (JEITA RC5720C) × 1ク
Clock sync input ConnectorBNC (gold-plate) × 1Input frequency10MHz
Input impedance50ΩInput level Rectangle waveEquivalent to TTL levelSine wave0.5 to 1.0Vrms
PowerAC120V, 60Hz
AC220-240V, 50/60Hz
Power consumption4WStandby power0.3W
Overall dimensions290 (W) × 84.5 (H) × 248.8 (D) mm(including protrusions)
Weight4.0kg
Included accessoriesAC cord, Remote control (RC-1338), AAA batteries × 2, Foot pads × 3, Owner's Manual
