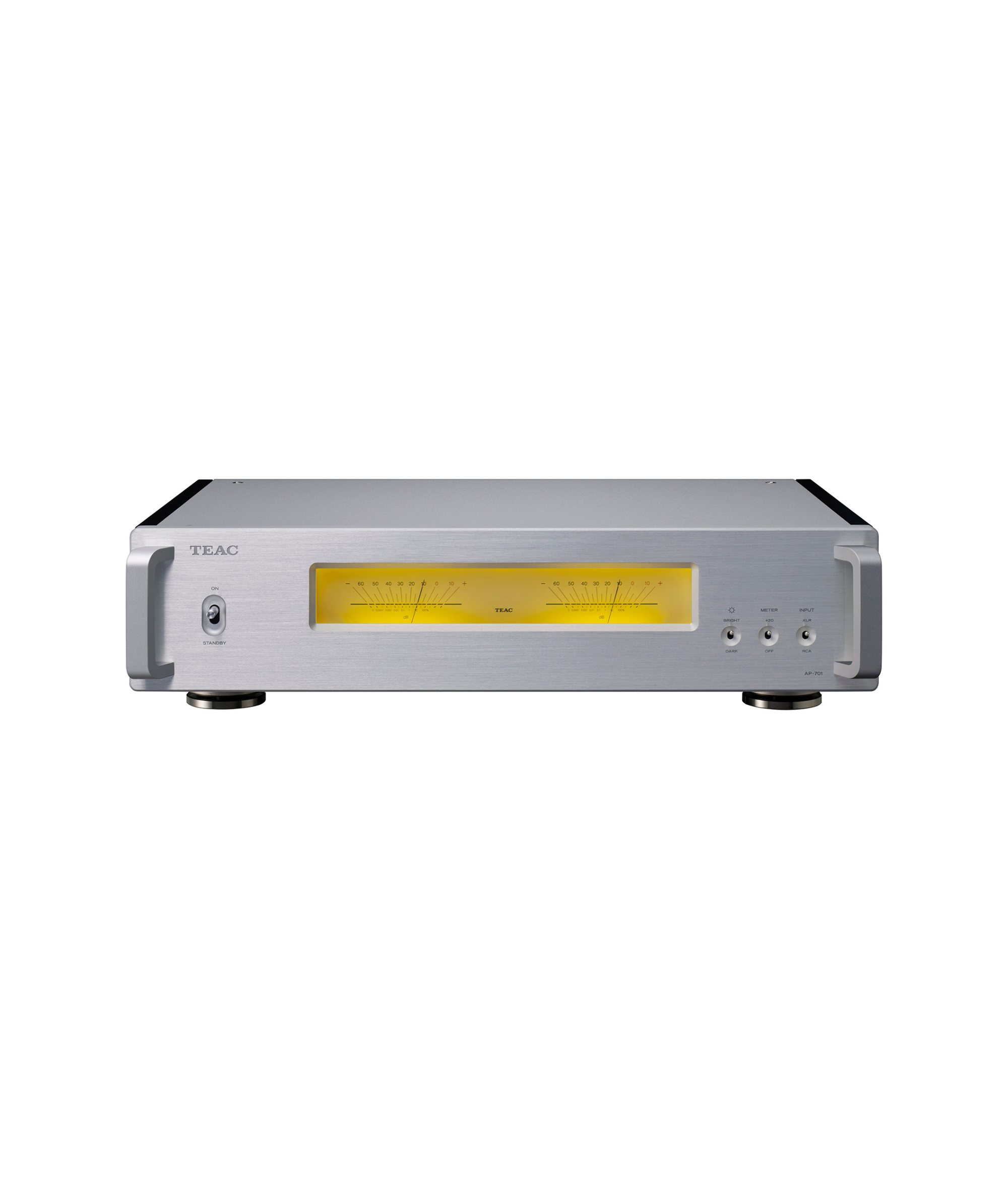

Dual mono power amplifier with fully balanced structure and two custom made Hypex Electronics Ncore power amplifier modules.
The unconstrained dynamism of sound awakens fundamental instincts. The AP-701 merges all the elements desired in a power amplifier at a high level, creating a new standard.

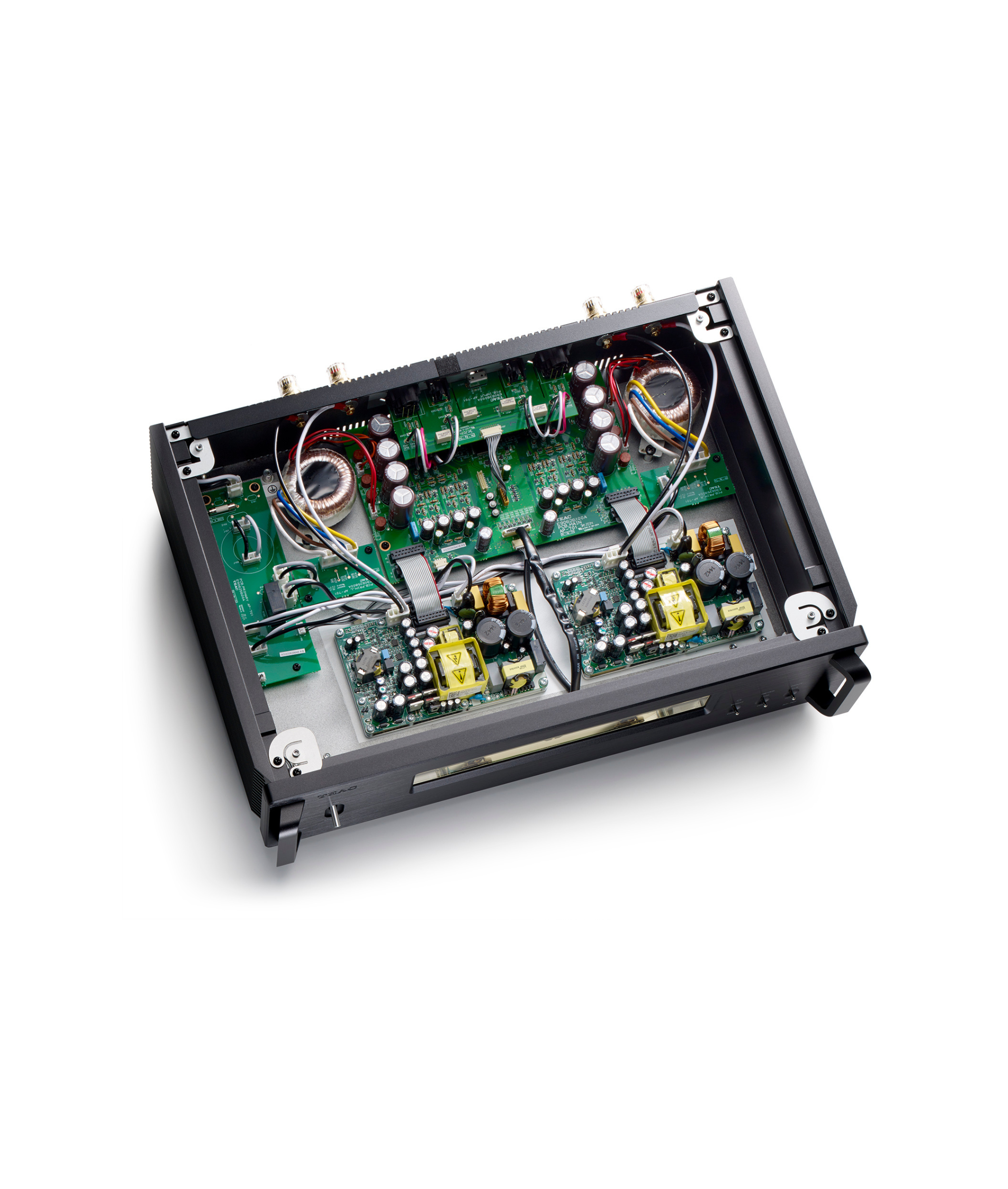

Independent left/right high-capacity toroidal core power supply transformers, discrete buffer amplifiers and two Ncore modules provide a complete dual mono structure from input to output. Moreover, the input stage of each channel has a fully-balanced design, so the dynamism of input signals is amplified as is, maximizing the innate performance of the speakers.
The cabinet is primarily comprised of 3mm-thick heavy metal plate but has a flexible structure to control vibration. By incorporating joints with suspension functions, the vibration frequency of the entire device is controlled to reproduce open and vibrant sound.
Amplifier section Practical maximum output260W + 260W (4Ω, 1kHz, JEITA)
170W + 170W (8Ω, 1kHz, JEITA)Rated output230W + 230W (4Ω, 1kHz, THD 1%)
125W + 125W (8Ω, 1kHz, THD 1%) Total harmonic distortion0.003% (8Ω, 1kHz, 55W, JEITA)S/N ratio110dB (8Ω, 1kHz, IHF-A)Frequency response10Hz to 50,000Hz (+0dB, –6dB, 8Ω, JEITA)

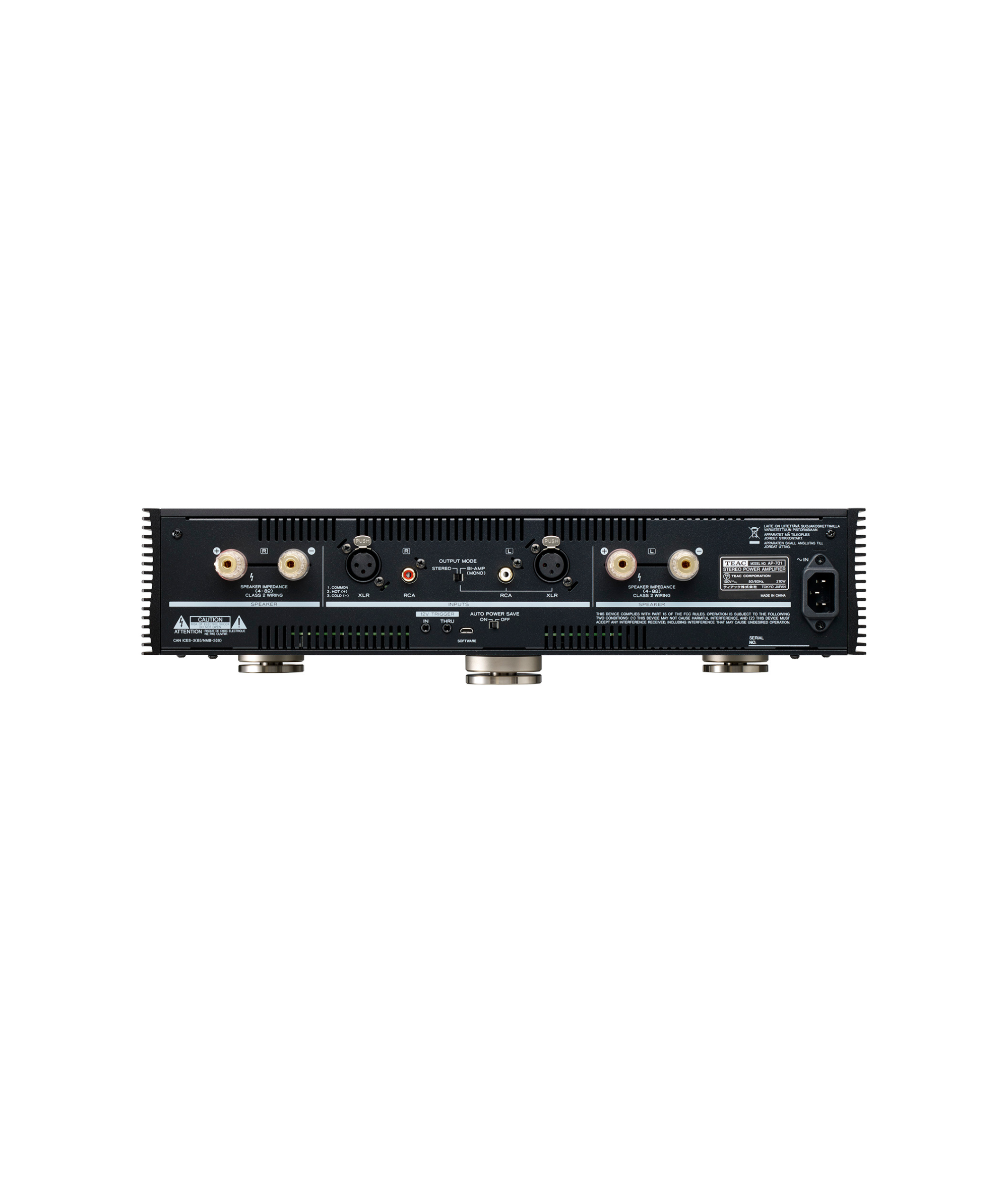

Analog audio inputs Balanced ConnectorsXLR (HOT: 2) × 1 pairInput sensitivity1.6VInput impedance64kΩ (in STEREO mode), 32kΩ (in BI-AMP mode)
Unbalanced ConnectorsRCA (gold-plated) × 1 pairInput sensitivity1.6VInput impedance32kΩ (in STEREO mode), 16kΩ (in BI-AMP mode)
Speaker output ConnectorsScrew type × 1 pair (gold-plate, compatible with Banana plug)Compatible speaker impedance4Ω to 8ΩExternal control
Trigger input (12V TRIGGER IN) Connector3.5mm Mono mini jack × 1Input level12V, 1mA
Trigger output (12V TRIGGER THRU) Connector3.5mm Mono mini jack × 1
PowerAC120V, 60Hz AC220 - 240V, 50/60Hz
Power consumption(120V) 97W (230V) 95W
Standby power0.4W
Overall dimensions444 (W) × 111.3 (H) × 348.2 (D) mm (including protrusions)
Weight9.9kg
Operating Temperature＋5℃ to ＋35℃
Operating Humidity Range5% to 85% (no condensation)
Storage Temperature Range–20℃ to ＋55℃
Included accessory Power cord, Foot pad × 3, Owner's manual
