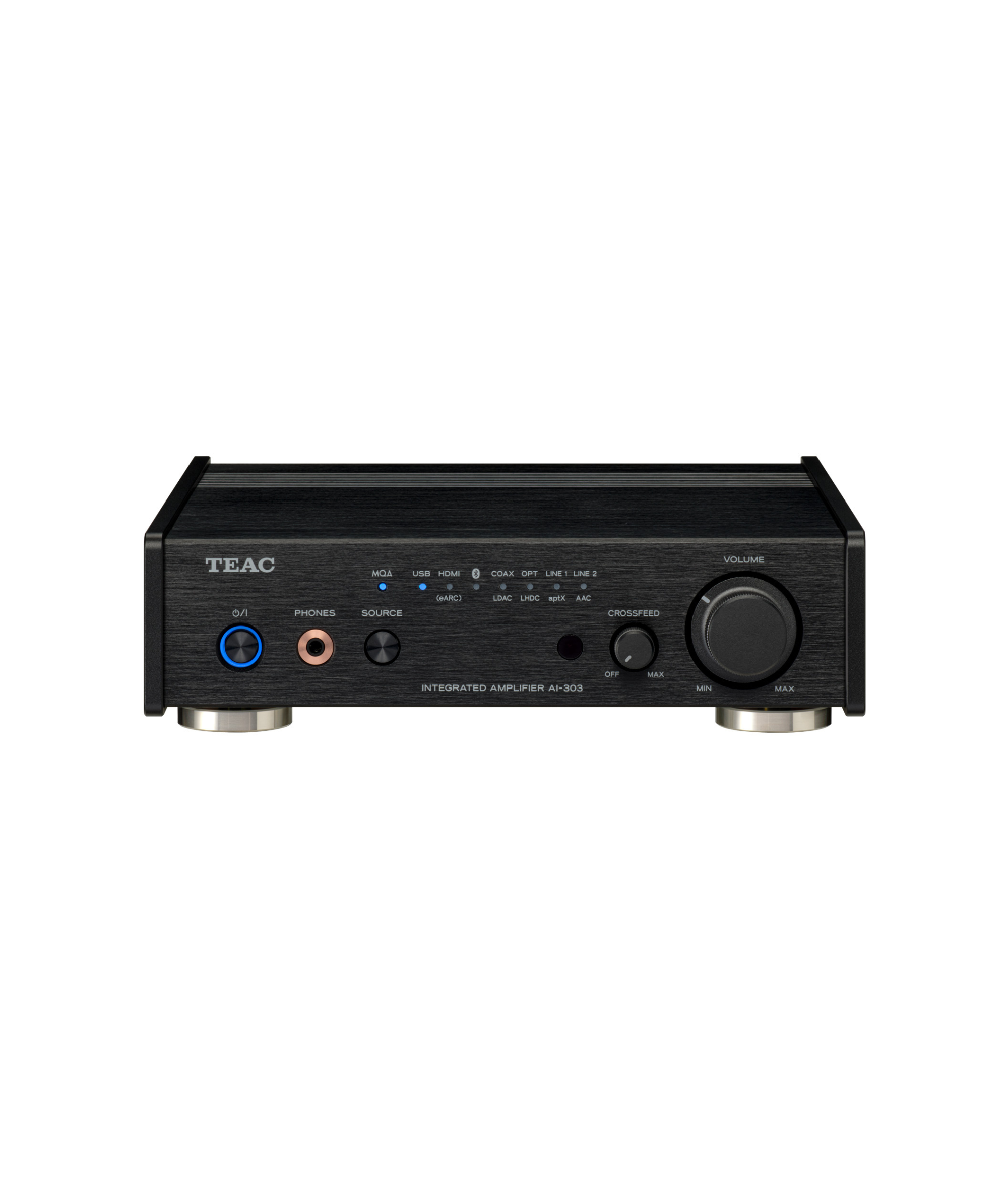

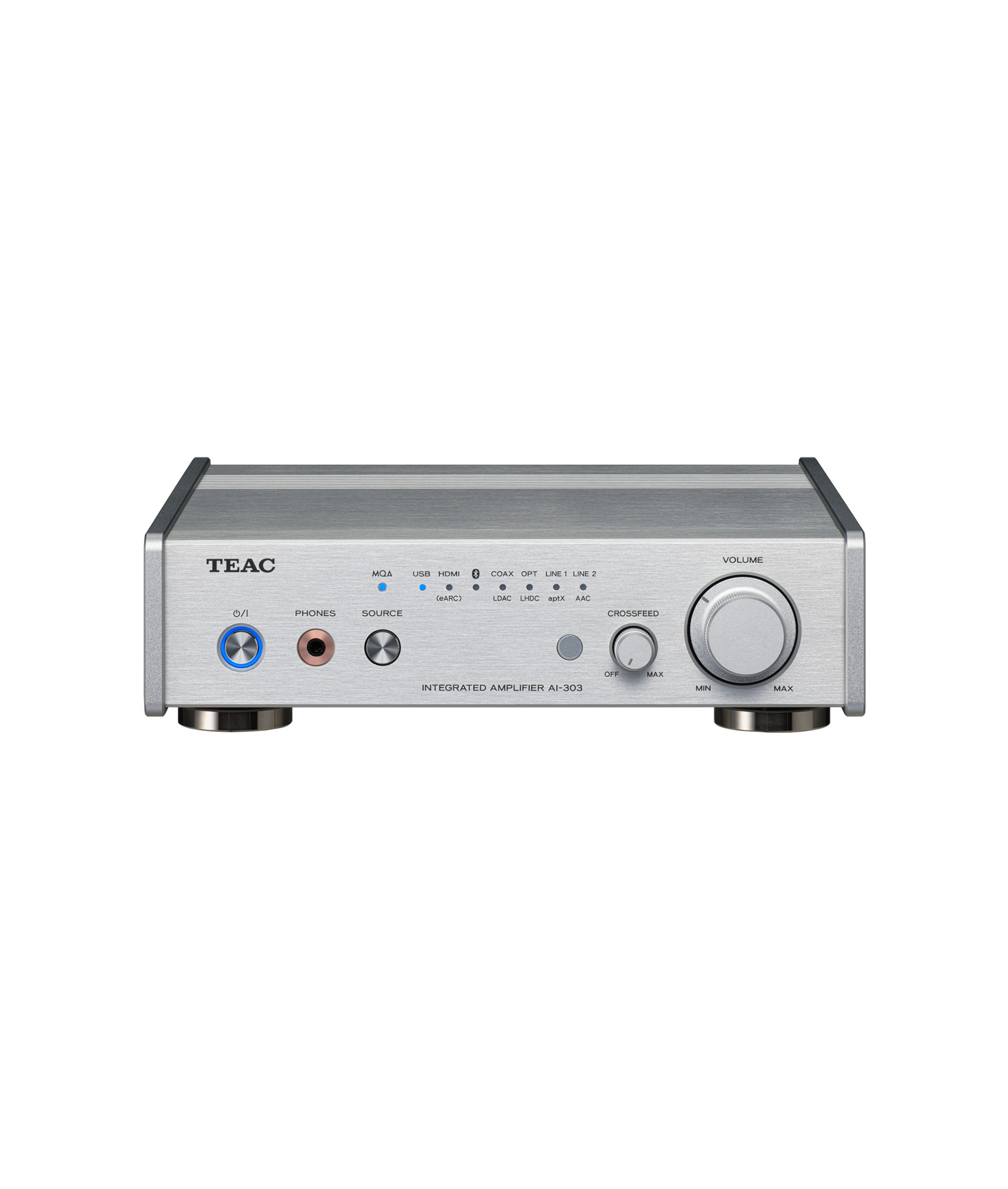

This desktop audio amplifier accommodates a compact amplifier module with Bluetooth® receiver and USB audio input to playback Hi-Res sound source.
Only 215mm in width, ideal for high quality sound playback on TVs and notebook PCs
This desktop audio amplifier with only 215mm width footprint accommodates a compact and high-performance amplifier module, Bluetooth® receiver supporting DAC®, Qualcomm® aptX™ HD and USB audio input to playback Hi-Res sound source such as DSD256 and PCM 384/32 from PC/Laptop, iPhone, Android phone and tablets, thanks to USB-C conncetor.

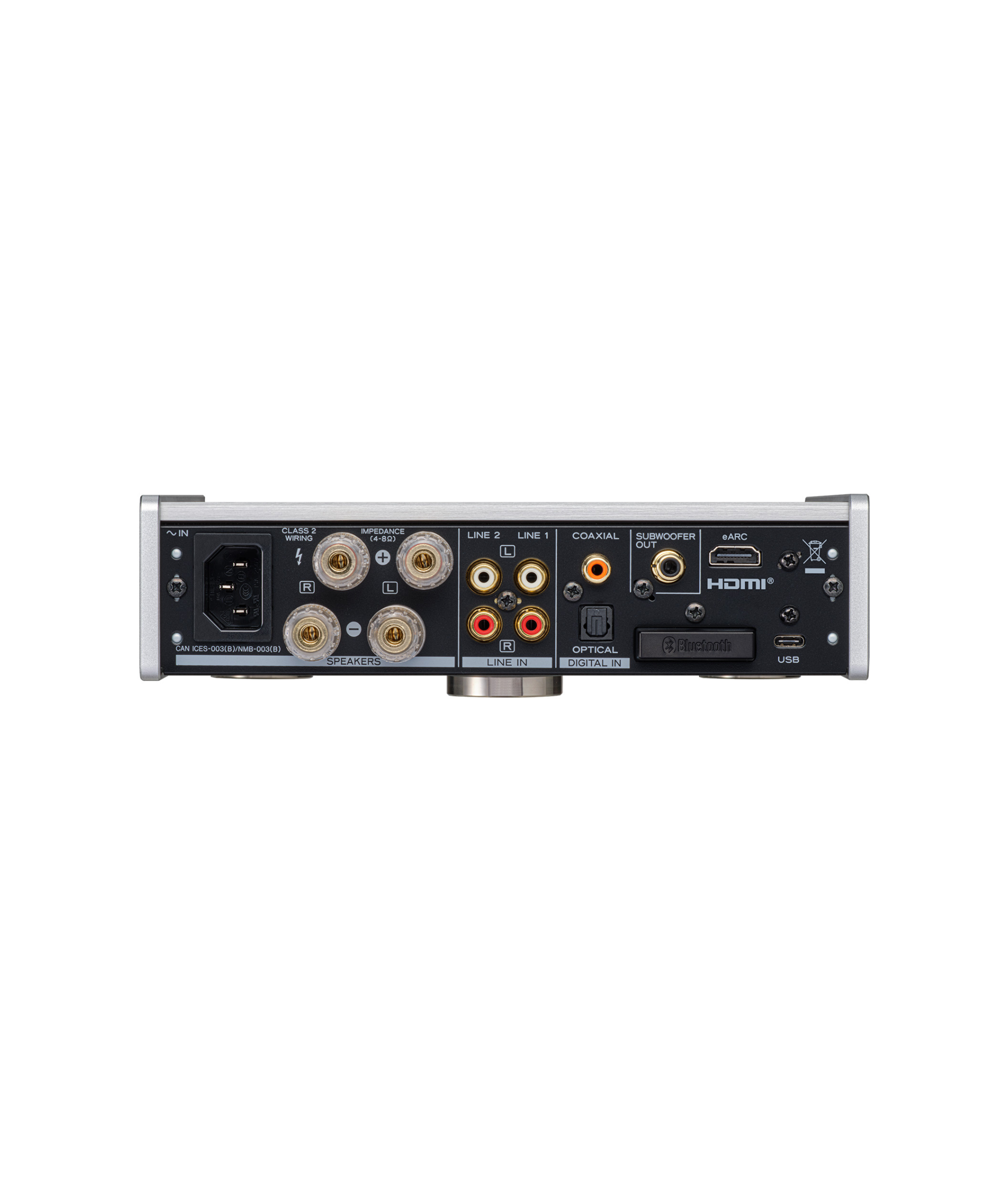

The HDMI interface ARC/eARC allows you to enjoy high quality TV sound with your favorite speakers, while a pair of LINE inputs fit your existing Hi-Fi system and the 4-pole headphone out with ground-separate circuit realizes upper class headphone listening.
Amplifier section Rated output25W + 25W (LINE IN, 1kHz, 8Ω, THD 0.03%, JEITA )
50W + 50W (LINE IN, 1kHz, 4Ω, THD 0.03%, JEITA )
Digital audio inputs COAXIAL ConnectorRCA × 1Supported samplign frequency LPCM32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz, 16 / 24bitDSD2.8MHz (in 176.4kHz/24bit DoP format)OPTICAL ConnectorTOS-link × 1
Supported samplign freqeuncy LPCM32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz, 16 / 24bitDSD2.8MHz (in 176.4kHz/24bit DoP format)USB ConnectorUSB Type-C × 1 (USB2.0 complied)
Supported samplign freqeuncy LPCM44.1k / 48k / 88.2k / 96k / 176.4k / 192k / 352.8k / 384kHz, 16 / 24 / 32bitDSD2.8M / 5.6M / 11.2MHzHDMI ConnectorHDMI Type-A × 1Supported formatsARC/eARC 192kHz, 24bit (PCM)Analog audio inputs LINE ConnectorRCA × 2 pairsInput impedance10kΩBluetooth® section Version4.2ClassClass2 (range: approx. 10m / 33ft.)Supported profileA2DP, AVRCPSupported codecLDAC, LHDC, Qualcomm® aptX™ HD audio, Qualcomm® aptX™ audio, AAC, SBCA2DP contents protectionSCMS-TNumber of paring memoryMax. 8 dvicesMulti-point connectionMax. 2 dvices
Speaker output ConnectorsScrew type × 1 pair (compatible with Banana plug)Compatible speaker impedance4Ω to 8ΩHeadphone output Connector3.5mm 4-pole Stereo mini × 1Pin assignmentTip: L+, Ring: R+, Ring: L–, Sleeve: R–Rated output power220mW + 220mW (LINE IN, 32Ω, 1kHz, THD 1%, JEITA)THD0.006 % (LINE IN, 32Ω, 1kHz, 50mW, JEITA)PowerAC 100 - 240V, 50/60HzPower consumption63W
Overall dimensions (W×H×D)215 × 61 × 257 mm (including protrusion)Weight2.3kgIncluded accessoriesPower cord, Remote control (RC-1337) , AAA batteries × 2, Owner's manual, Warranty
