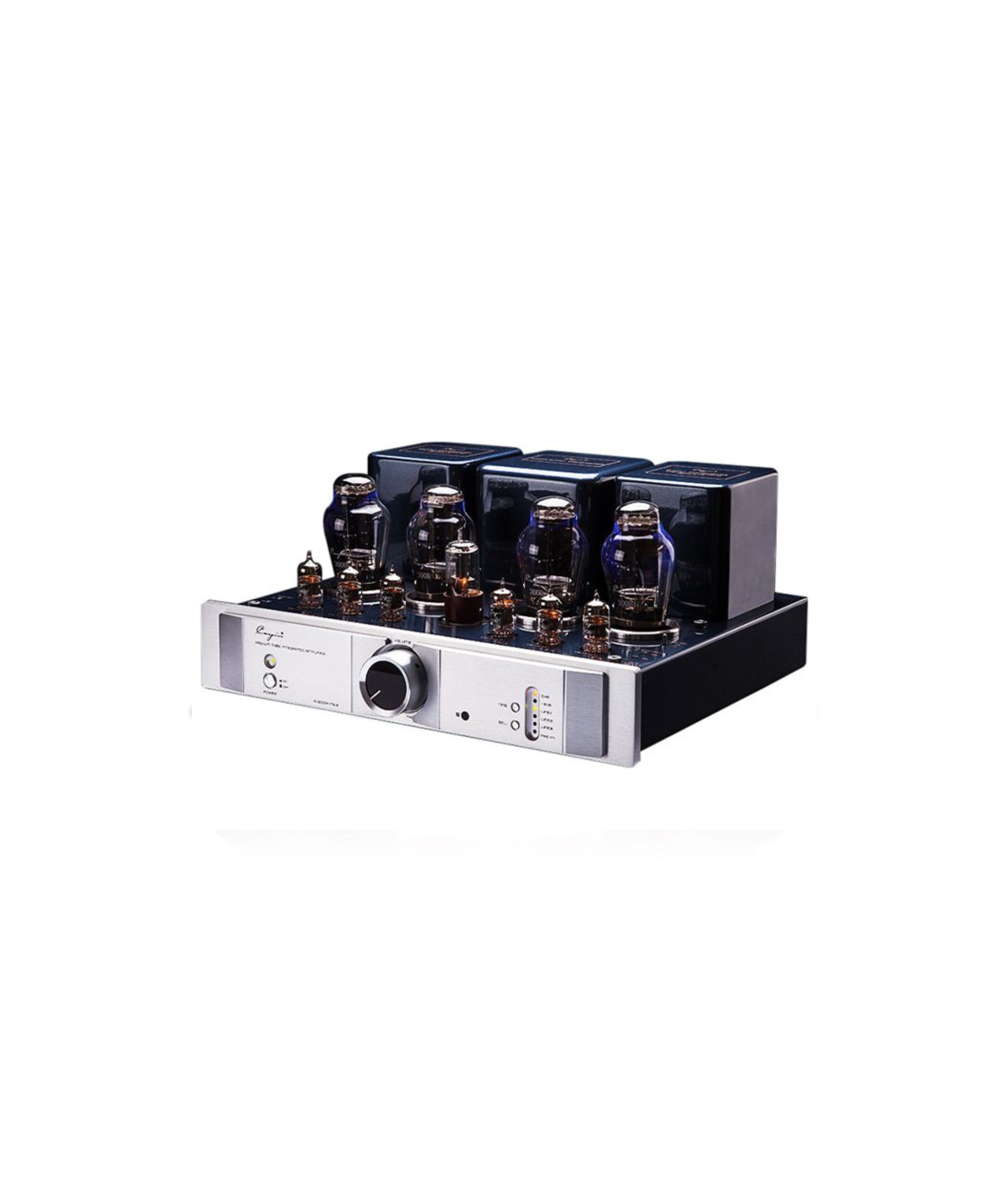

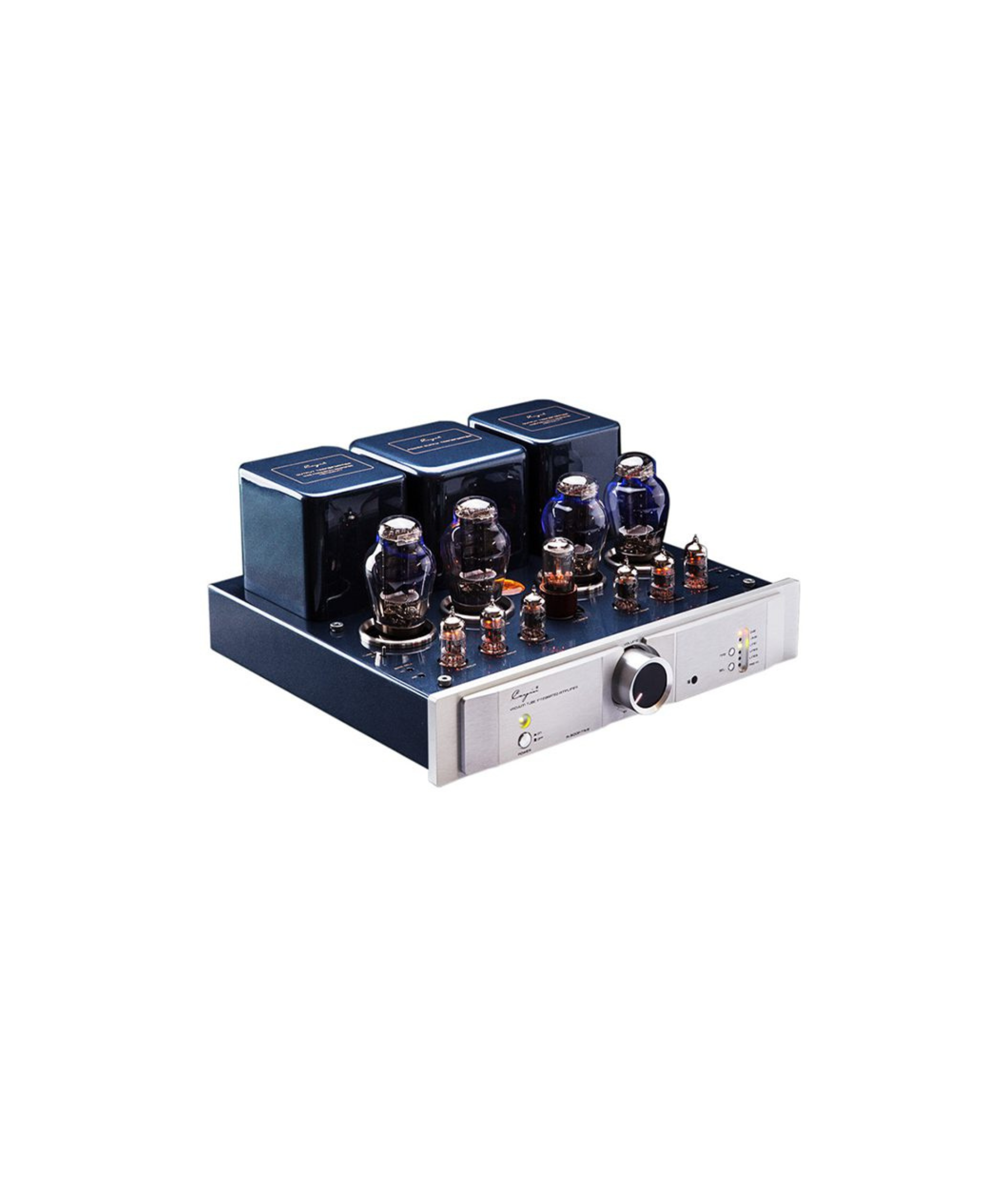

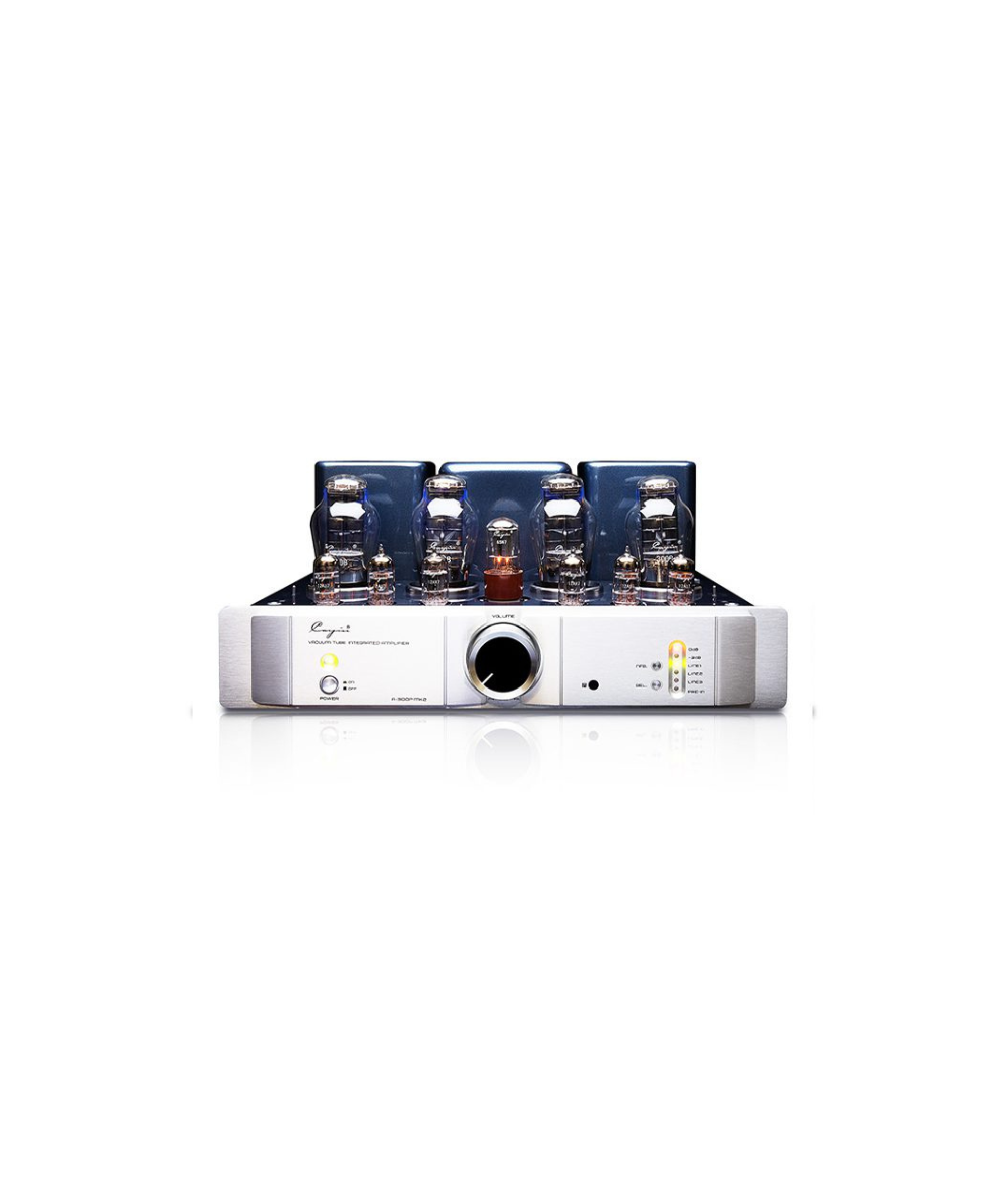

The Cayin MT-50 is a push-pull amplifier, made by purely hand-configured Point-to-Point wiring – this is much more time-consuming and more complex than circuit board technology, but the rewards are significant gains in musical performance.
This kind of meticulous attention to the design details increases the conduction speed between circuits and promotes the perfect balance between articulation and texture in the sound image.
The MT-50 also offers convenient Bluetooth (full bandwidth APT-X) wireless transmission of all compatible audio sources, opening up the exciting world of wireless music streaming.
This custom-made Cayin Bluetooth design pushes music directly to the MT-50's amplification steps via a custom CSR8670 chip, using the latest V4.0 Bluetooth transmission protocol. We have also limited the signal path to an absolute minimum, significantly improving overall performance.
Functions:
Hi-Res/bandwidth APT-X Bluetooth digital audio technology.
The voltage reinforcement ladder and the push-trap use the high-quality Dawning 12AX7 and 12AU7 vacuum tubes respectively.
The exquisite US RCA 22ED4 rectifier is used in a custom-made Cayin design.
Left and right channels use two KT88 (EL34) vacuum tubes for AB1 push-pull power amplification.
Both Triode and Ultra-linear working modes are available
Easy BIAS adjustment of the end tube with integrated Bias Meter.
Ultra-high efficiency via Cayin's own low-leakage magnetic nuclear transformer and two custom EI-type output transformers.
Technical Data:
Supply voltage AC power 230V ± 5% 50Hz
Nominal output powerTR:18W+18W (RMS transistor operating state)UL: 36W+36W (RMS super-linear working state)
Frequency response10Hz~50kHz (-3dB)
Harmonic distortion1% (1kHz)
Signal – noise ratio90dB
Entry sensitivity300mV Input Impedance100k Output Impedance4.8
Energy consumption270W Entry clampsAPT-X V4.0 Bluetooth, LINE1, UNE2, LINE3
Using vacuum tubes12AX7x1, 12AU7x2, EL34/KT88x4, 22DE4x1
Size (WxDxH)360x330x180mm
Net weight6.5 kg
Bluetooth versionV4.0Main chipCSR8670
Audio transfer systemSBC, AAC, APT-X
Bluetooth transfer distanceEffective range 10 meters
