Technical Data:
Frequency range8 Hz ～ 60 kHz (-3 dB)
Output power (RMS) at 4 and 8 ohms36W+36W ultralinear, 18W+18W triode.
Total harmonic distortion (THD)0.25% (1 kHz)
Signal-to-noise ratio93 dB
Input Impedance100kOhm
Input sensitivity300mVCircuitClass A/B
Pipe assembly1x 12AX7, 2x 12AU7, 4x EL34
Equipment Integrated bias measuring instrument
Headphone output16Ω~300Ω
Entrances3 x Line, Bluetooth
CAYIN MT-35 MK3

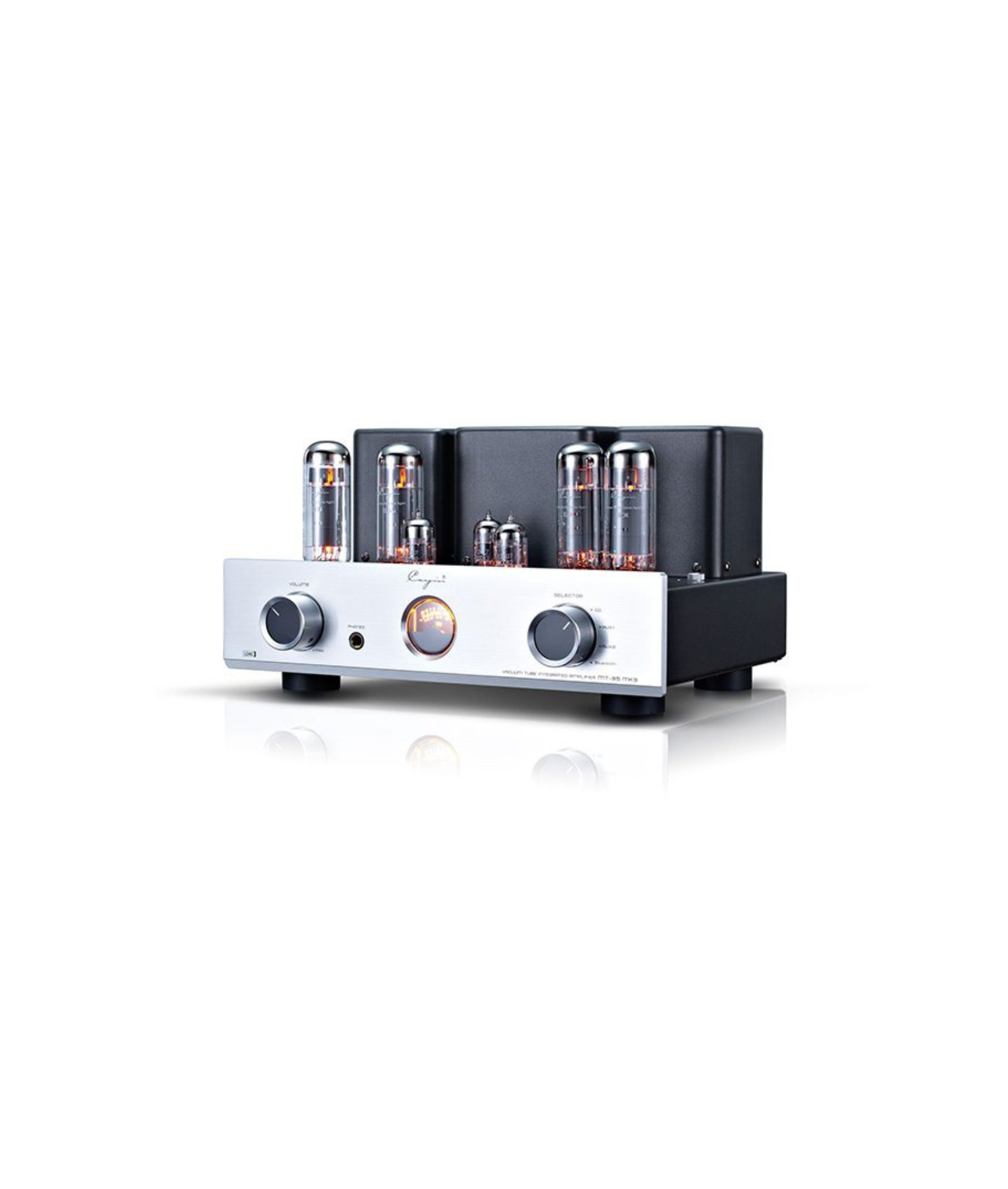

Cayin has a new integrated tube amplifier, the MT-35 Mk3. It is the successor to the MT-35 MK2.The MK3 has received the protective cover from the Jazz series for a sleek design.
At the rear we find 3 RCA inputs and in addition the MT 35 is equipped with Bluetooth connectivity and therefore fully equipped.

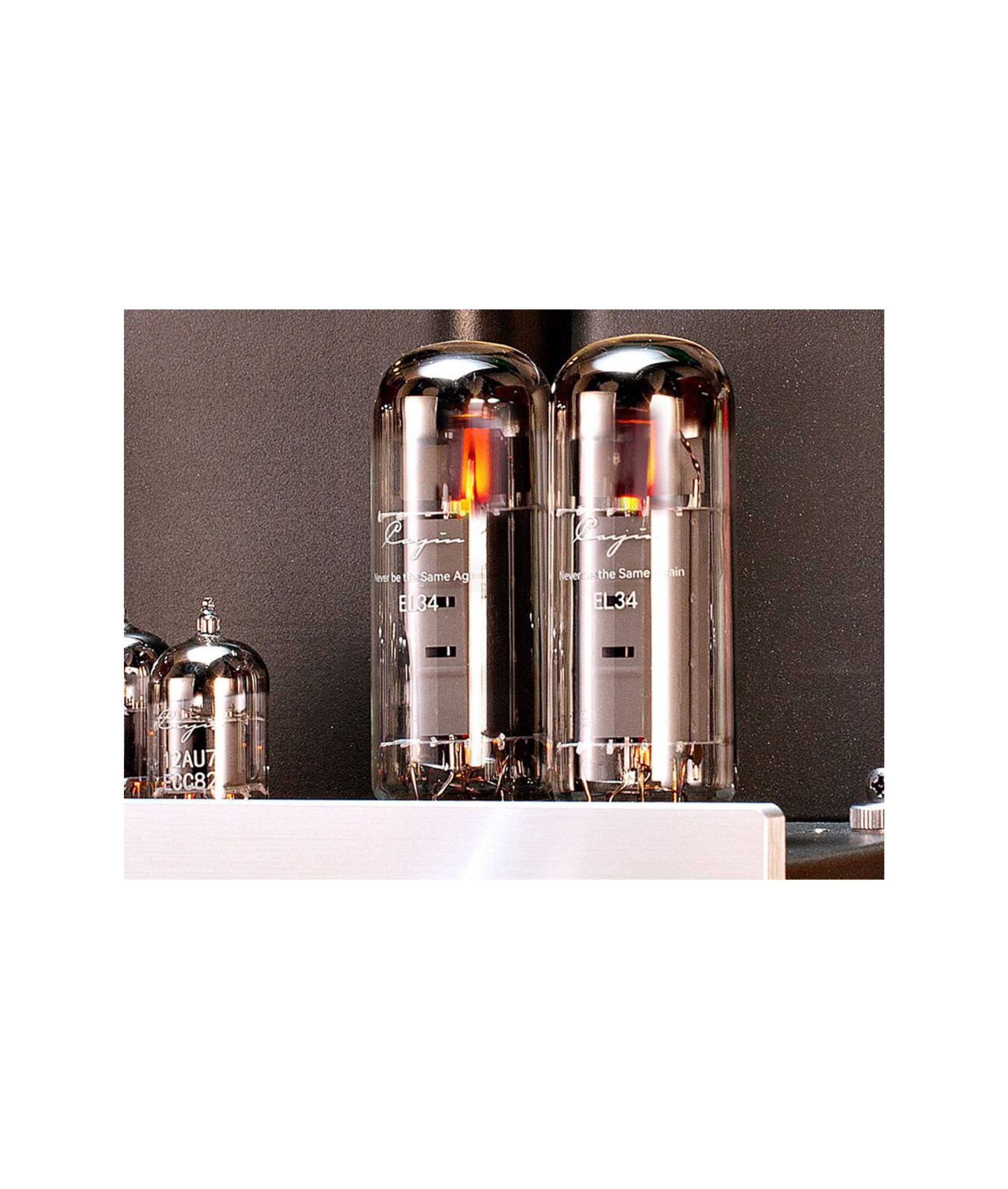

The Cayin MT-35 Mk3 works in class AB and delivers an output power of 2 x 36 Watts in ultralinear mode. Four EL34 type (two per channel) are used as end tubes, supported by classic preamplifier tubes of the type 12AX7 (or ECC83) and 12AU7 (or ECC82). According to the manufacturer, the manually wired point-to-point circuit and the specially developed output transformers ensure a balanced sound.
The amplifier features three analog RCA inputs and an integrated Bluetooth receiver that enables wireless playback via Bluetooth 5.1. High-quality codecs such as AAC, aptX HD and LDAC are also supported. A headphone jack is mounted on the front to connect headphones with an impedance between 16 and 300 Ohm.

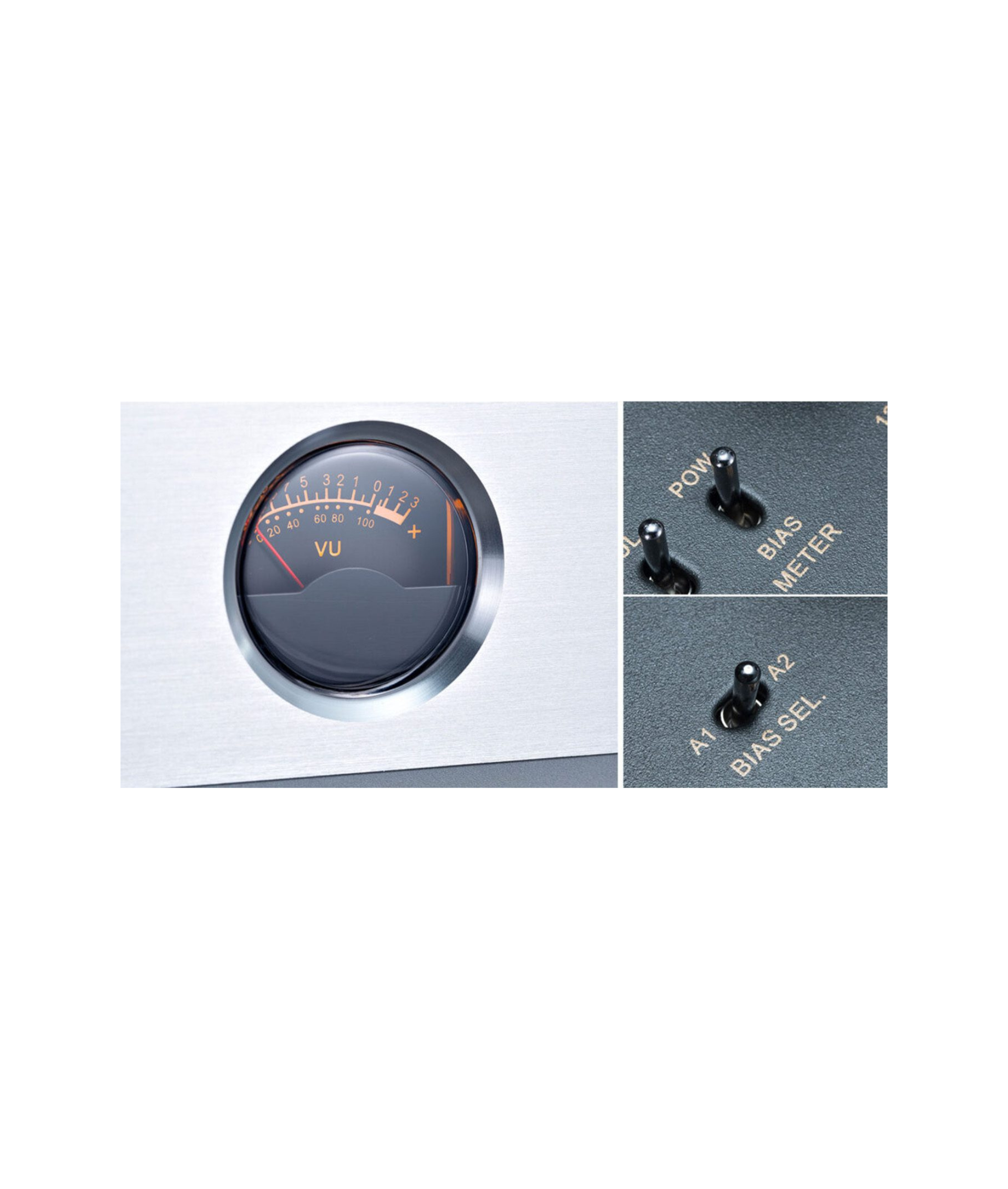

Vu meter with set bias
The centrally placed illuminated VU meter not only contributes to the retro appearance, but also serves as an indicator for the bias setting of the end tubes. A removable protective cage protects the tubes, while you still have a clear view of the seven glass spheres.
