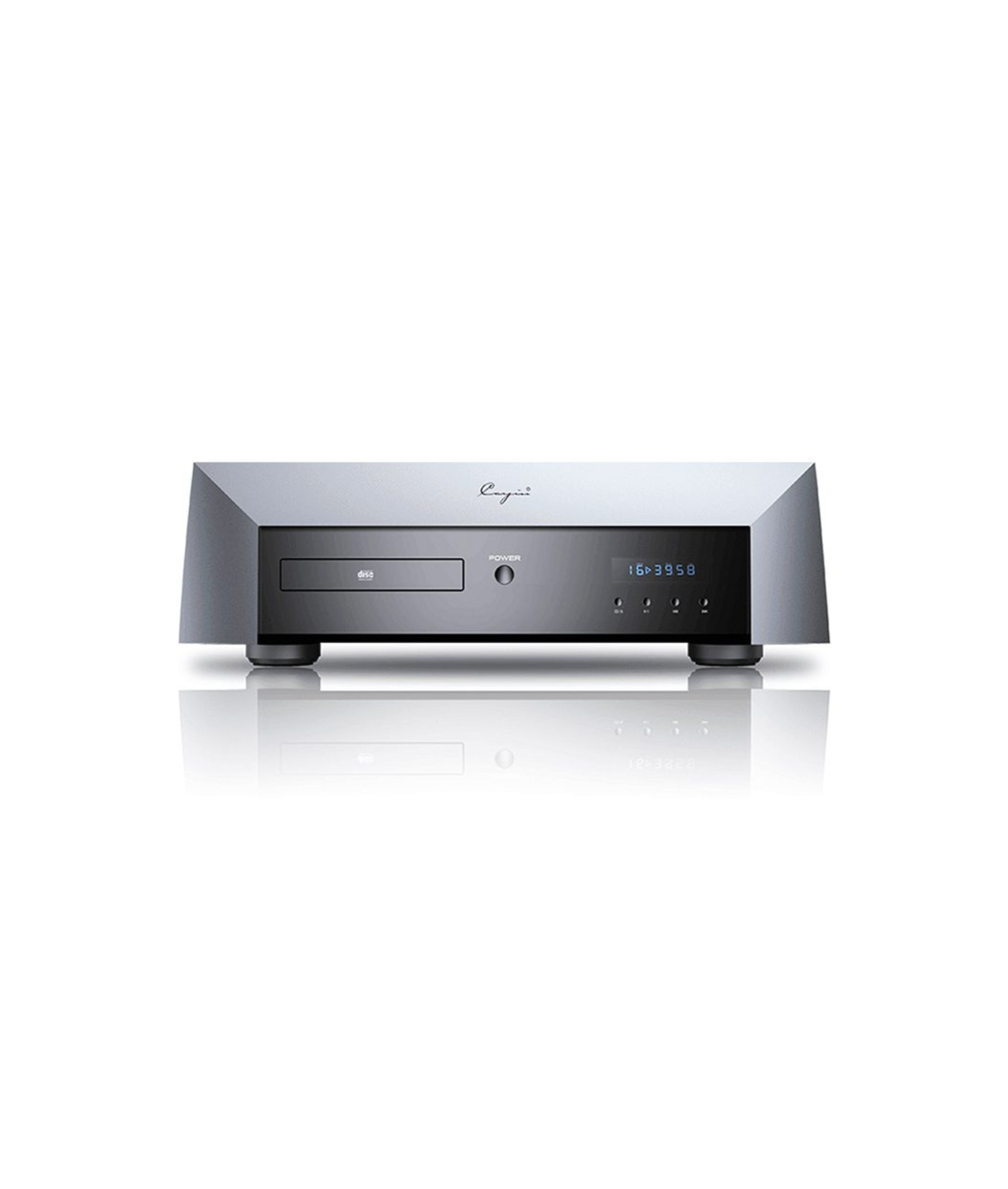

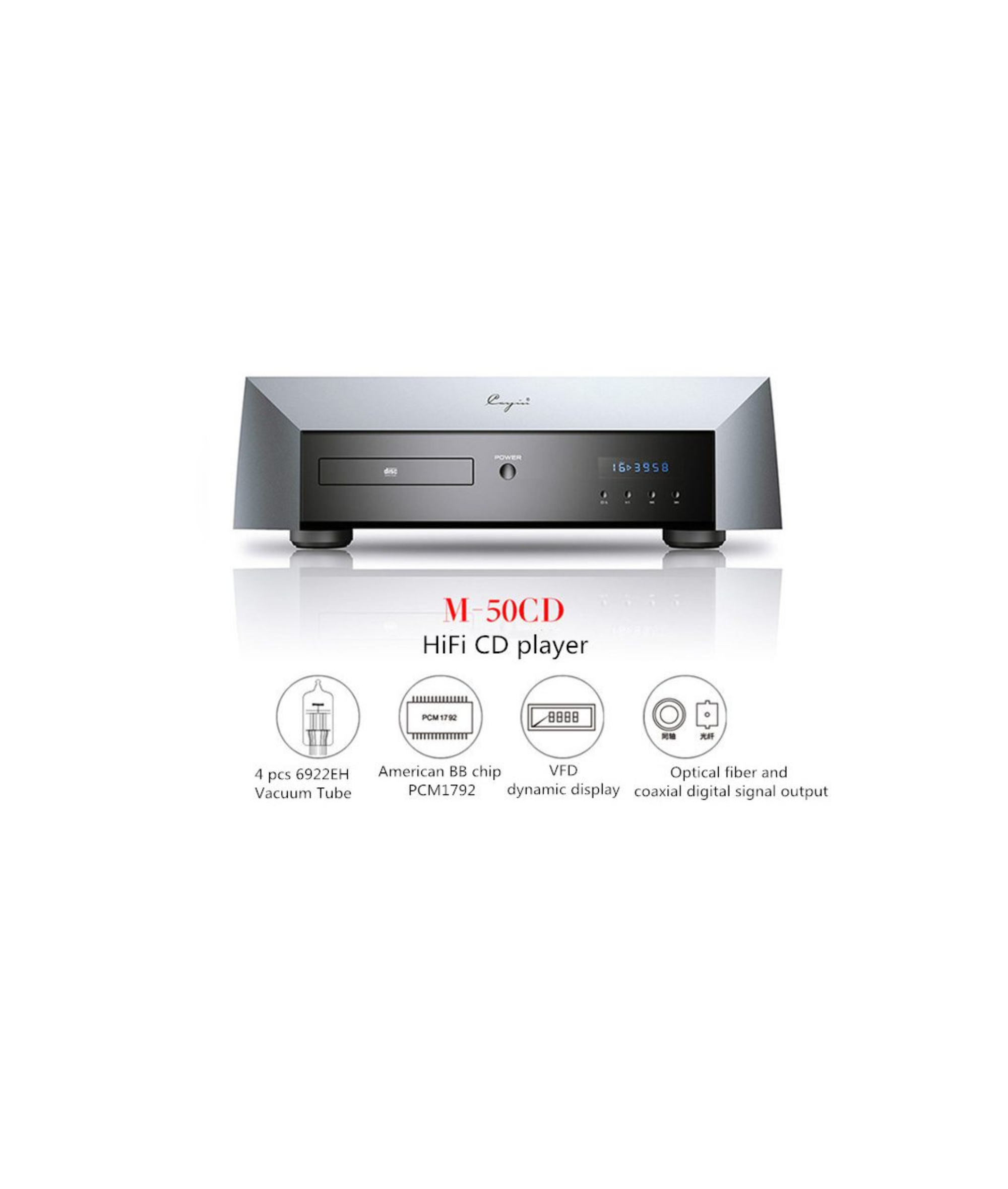

Cayin M-50CD Using professional up-conversion chip processing software, the audio frequency is increased to 192 KHz, the PCM1792 chip recommended by most HIFI friends is used for decoding, the specification is a maximum of 24bit/192kHz, for the two-channel fully balanced architecture.
Professional High Quality Decoder Chip
Low-through filter circuit uses a special audio amplifier, the digital output section offers three connections: AES/EBU, coaxial and optical.
Fully Balanced Output
The M-50CD offers pure fully balanced output and a pair of tubes with gold-plated pins 6922EH is used for balanced amplification and output. The other pair of tubes with gold-plated pins 6922EH is used for single-sided amplification and output. The goal of this is to prevent single-ended and balanced amplification from interfering with each other, so just HIFI to the end and use 2 pairs of 6922EH to process separately.
Feel the sweet and soft sound of Vacuum Tube
The analog sound output uses two sets of independent vacuum tube and crystal tube tuning circuits. The vacuum tube somewhat compiles using 6922H tube, and the output circuit of the crystal tube uses carefully selected paired FETs and high-quality capacitors.
Technical Data:
FREQUENCY RANGE 20Hz-20kHz ±0.5dB S/N RATIO92dB
TUBE TYPE4 × 6922EH Gold
DIGITAL OUTPUT1×Optical
1×Coaxial
1×AES/EBU
ANALOG OUTPUT1×Unbalanced RCA 1×Balanced XLR
DIMENSIONS460 mm × 415 mm × 147 mm (W × D × H)
WEIGHT17 kg
