azz 80 is the first model of Cayin Tube that is integrated with both Bluetooth and remote control. Our MT-35MK2 and MT-50 have Bluetooth, but this time we have an upgrade for Jazz 80: we also included the remote control for the amplifier model.
Jazz 80 is designed based on KT88 or EL34 Power Tube. It delivers 40 watts with KT88 Power Tube or 36 watts with EL34 Power Tube. Designed in class AB, the Push-Pull Jazz 80 requires two pieces of KT88 tube or EL34 tube per channel.

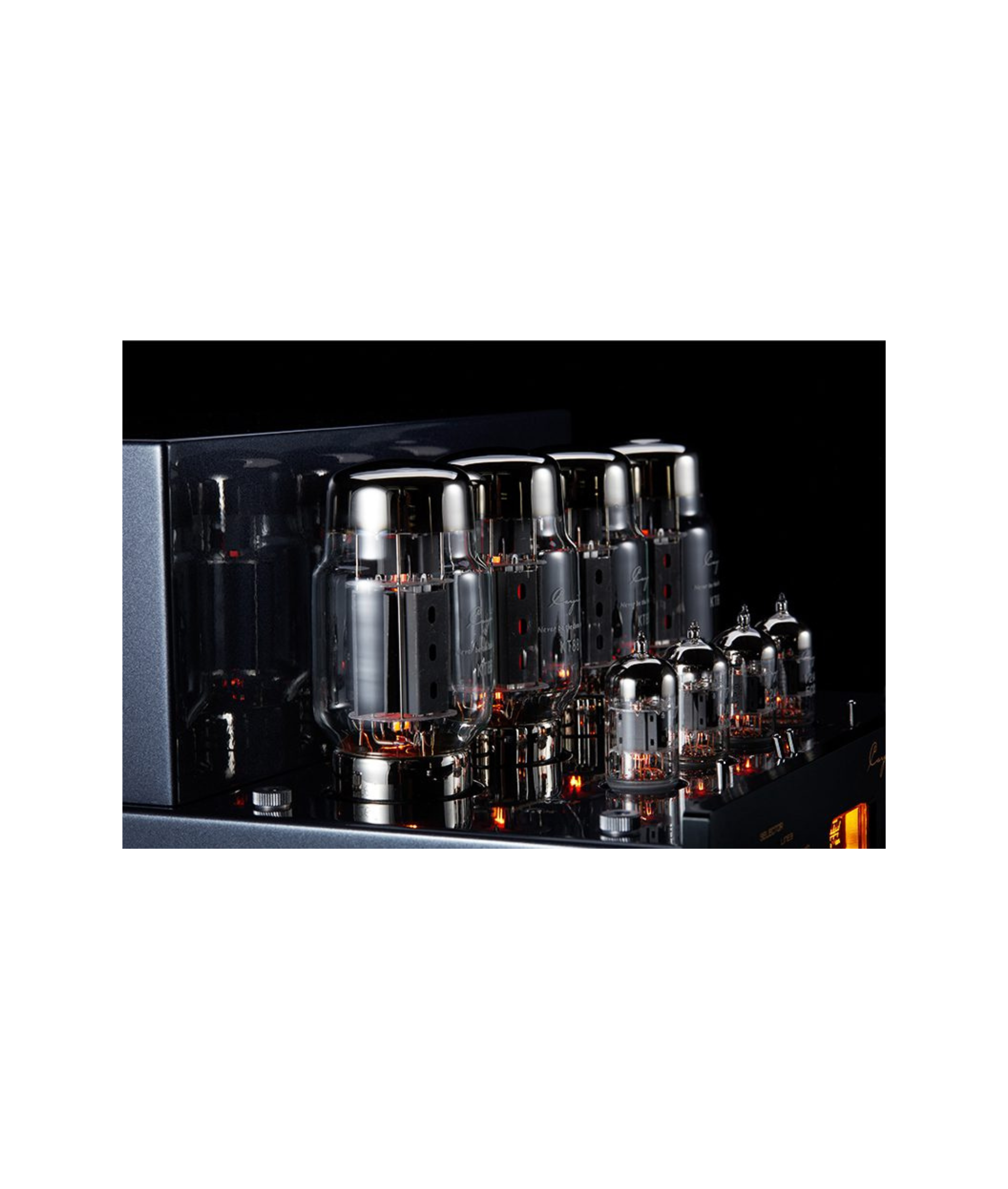

All tubes integrated with 12AX7 voltage reinforcement ladder, 12AU7 driver ladder and EL34 or KT88 output tubes.

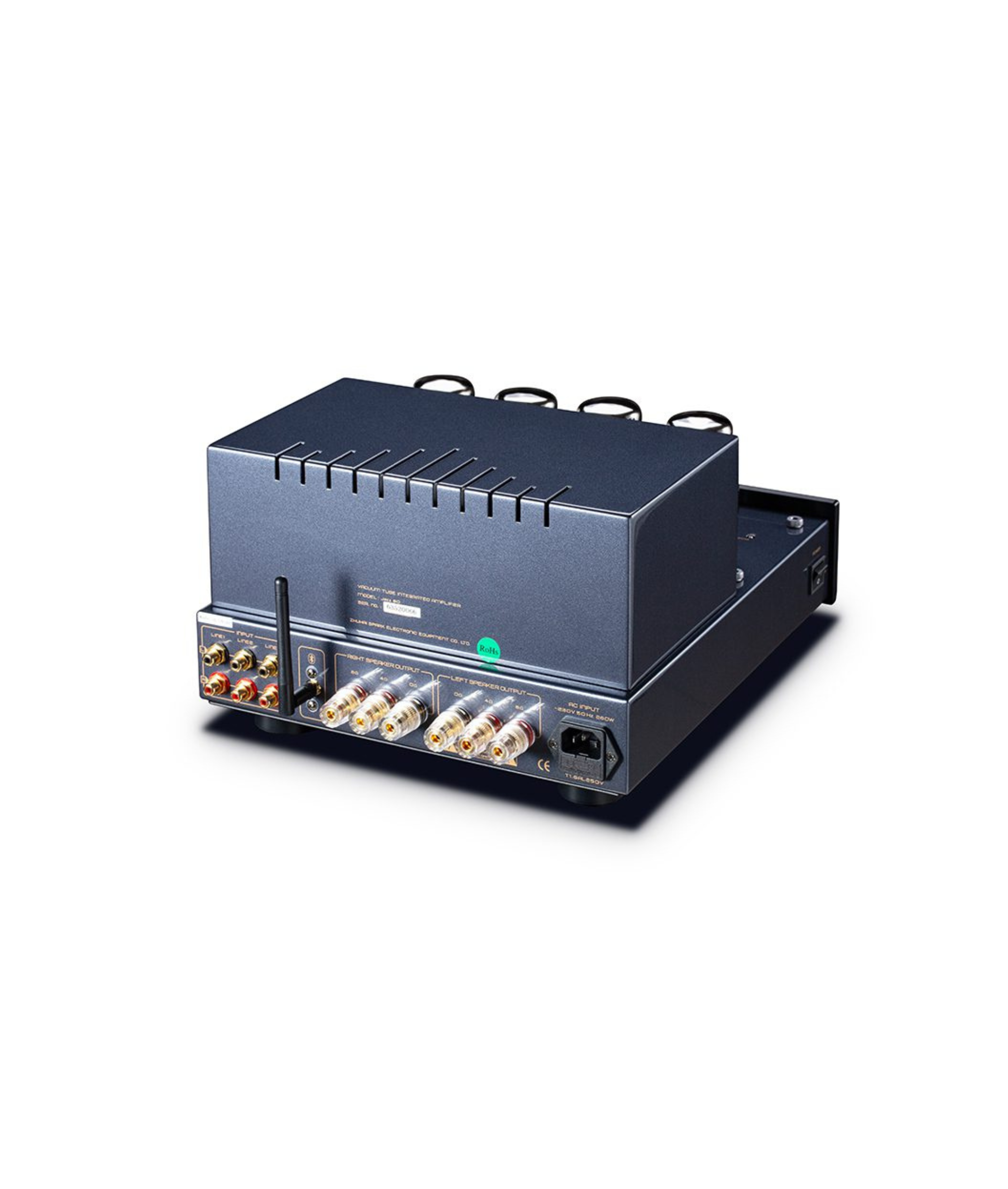

Three pairs of line inputs and one pair of Bluetooth inputs are located on the back panel or amplifier.
Speaker connections for 4 and 8 ohm speakers are located on the rear panel of the amplifier.
By using the modified output transformer, the Jazz 80 offers a headphone output that can control most headphones on the market.

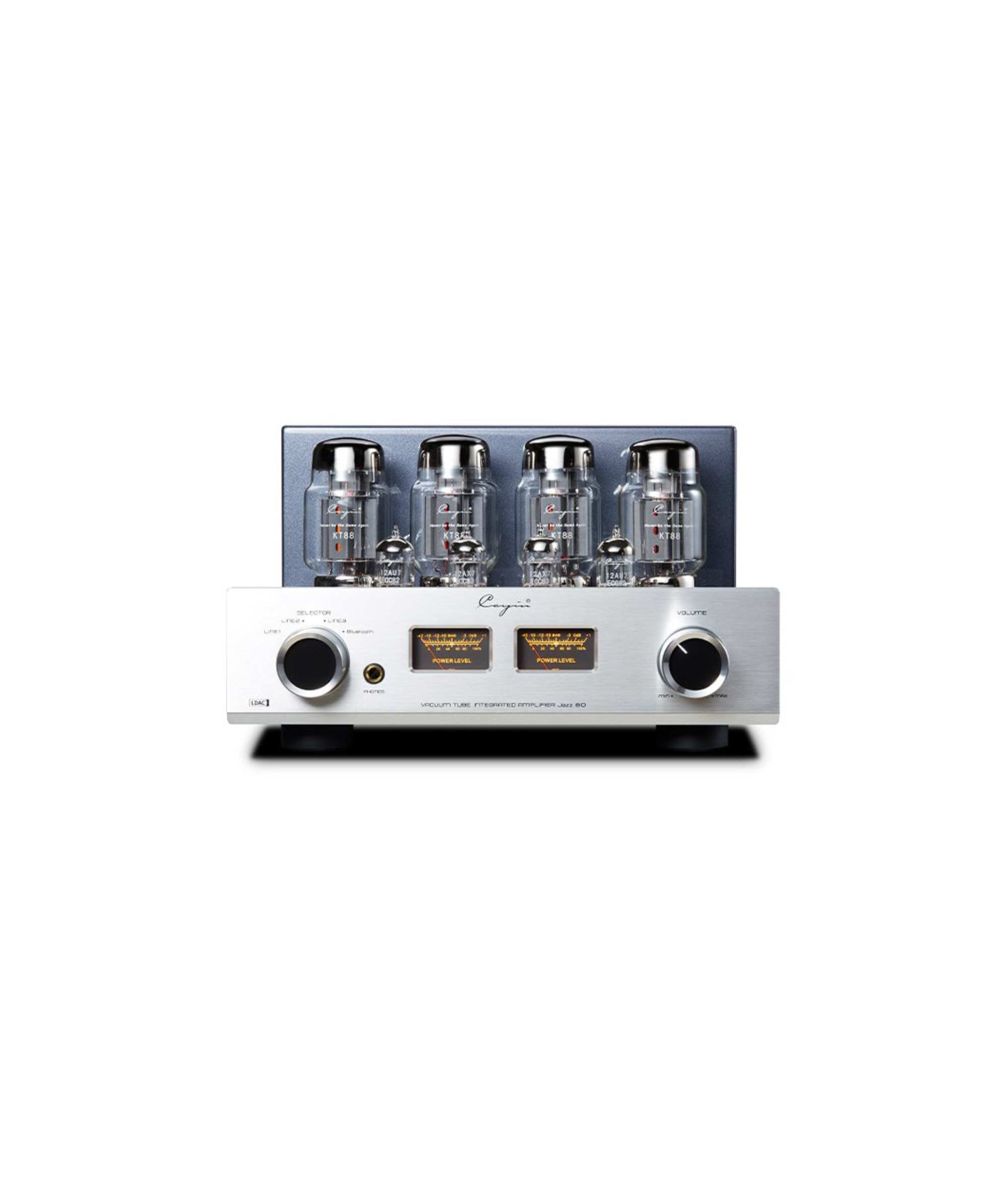

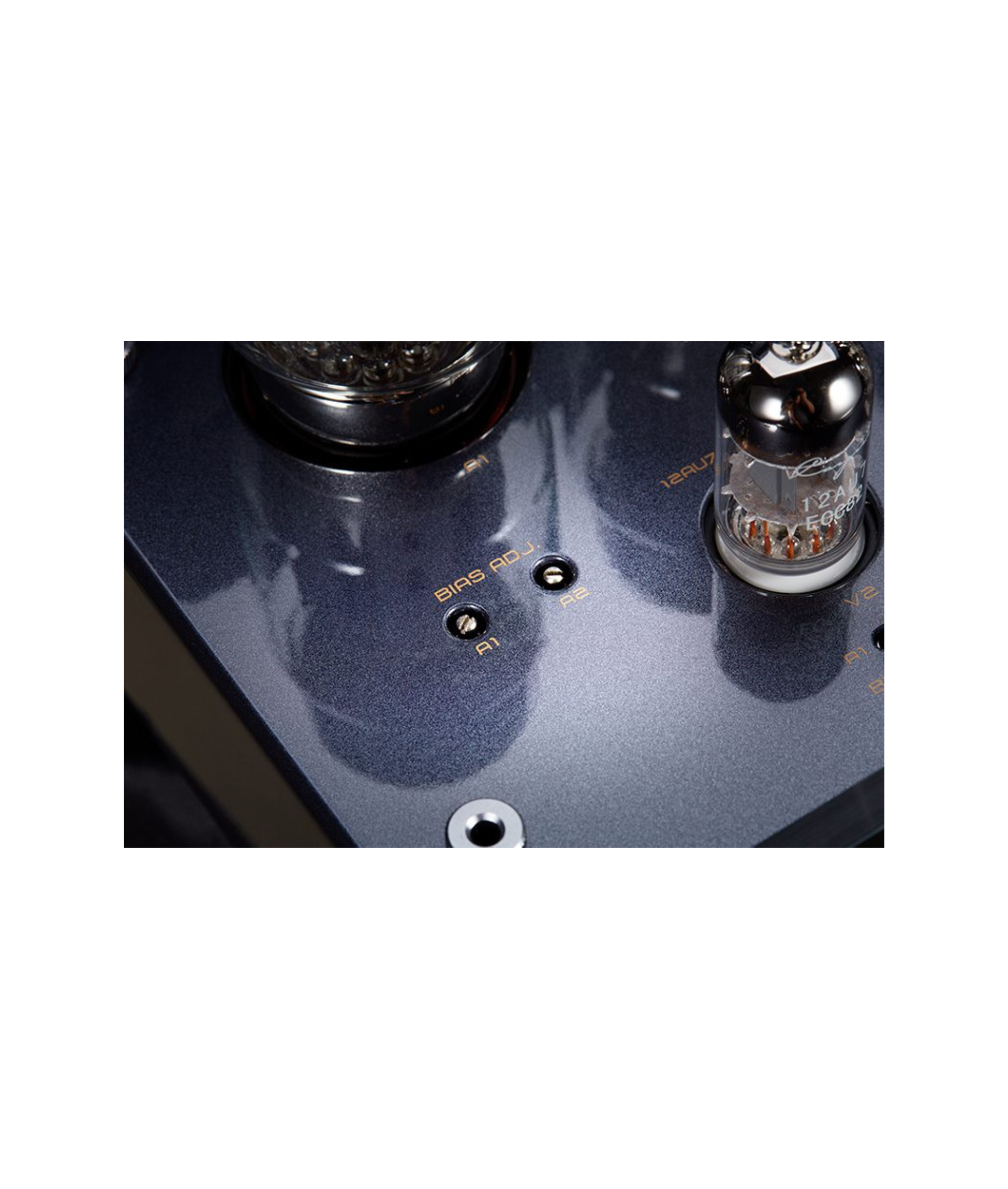

Dual function meters: double gauge design, retro and eye-catching, a professional power meter that rhythms with the power. You can feel the beauty of the musical rhythm. Furthermore, you can also use the meter for bias adjustment and monitor.
Jazz 80 can run in two control models: Ultralinear and TRIODE. With different models, the output power and sound performance are different. You can compare and choose the one you prefer when you listen to different styles of music.
Anodized aluminum front, fully ventilated chassis with excellent beautiful workmanship, handcrafted construction with the finest point-to-point wiring.
Premium parts: Alps volume control, porcelain pipe connections, audio quality capacitors and carbon film resistors, power supply core transformer, wide-band wide-band EI output transformer, etc.
Standard with remote control, the Jazz 80 can remember the last action of the device after it is turned off.
Technical Data:
Power Output: TR:20W+20W, UL:40W+40W
Frequency Response: 8Hz-60Khz (-3db)
THD: 0.2%(1W/1kHz) S/N Ratio: 90dB
Input Impedance: 4Ω, 8Ω Max Power Consumption: 280W
Tube: 12AX7×2, 12AU7×2, KT88×4 or EL34×4 Headphone Output Impedance: 16Ω-300Ω
Input Connector: LINE1, LINE2, LINE3, Bluetooth V5.0
High Fidelity DAC Chipset: ES9018K2M SABRE32
WxDxH: 300mmx385mmx190mm Net Weight: 17kg
