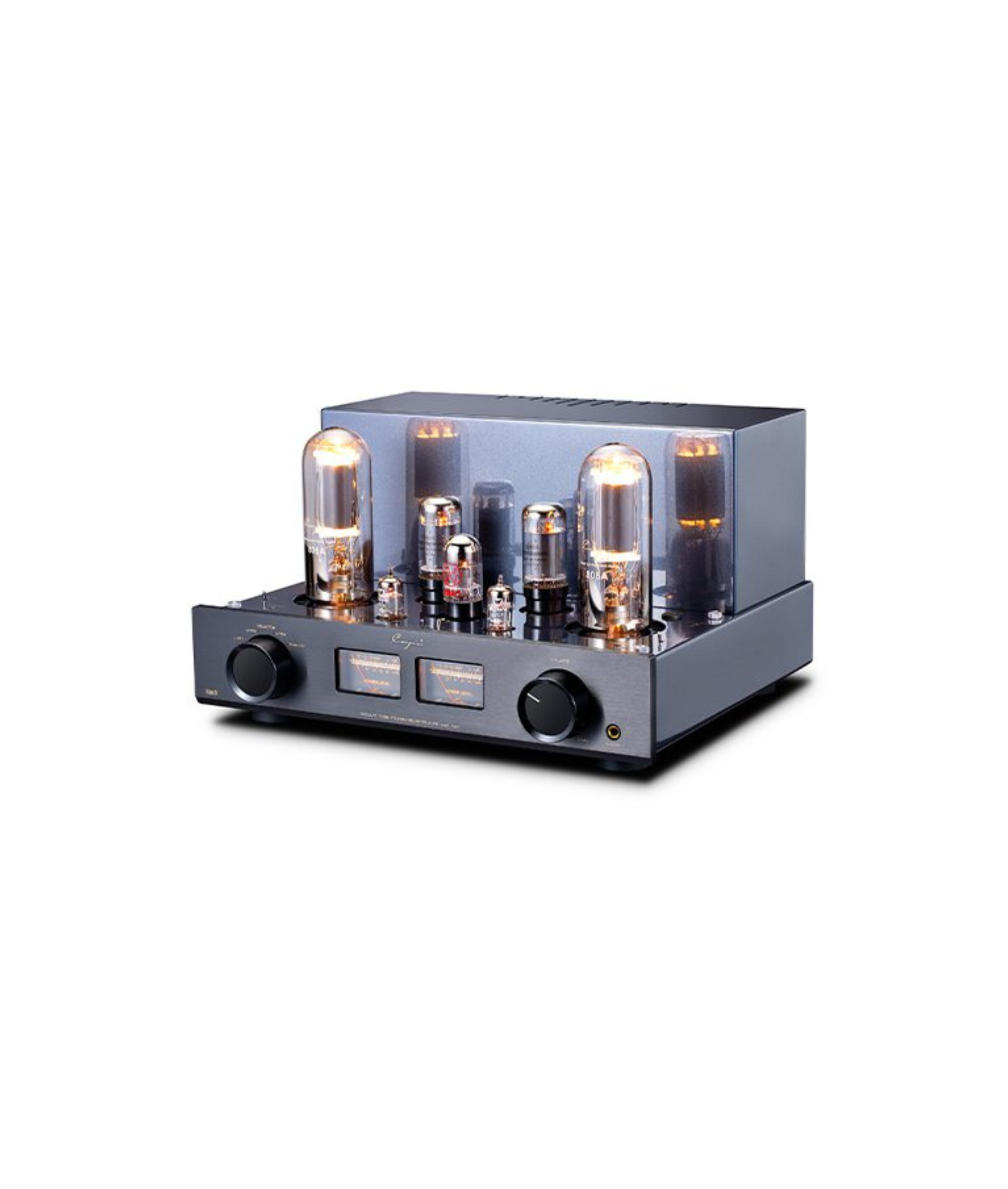

Cayin Jazz 100
The Cayin Jazz 100 is designed based on the 805A Power Tube. This delivers no less than 46 watts per channel and that in Single Ended Class A!
For best results, all tubes are integrated with Mullard 6JC6 and 6SN7 voltage amplifier ladder, 6L6 driver ladder and the 805A end tubes. For Driver stage, the Jazz uses the 6L6, but you can also easily use the EL34, 6CA7, 5881, 6550, KT88, KT90 etc for replacement so you can enjoy the different sound performance.
There are three pairs of line inputs on the back, and one pair of Bluetooth inputs of the amplifier. In addition, the speaker connections for 4 and 8 ohm speakers.
By using the custom output transformer, the Jazz 100 offers a headphone output that can control most headphones on the market.
At the front are the beautiful VU meters with dual function: retro and striking, a professional power meter that rhythms with the power. You can feel the beauty of the rhythm of the music. You can also use the left meter for bias adjustment and monitor with meter switch on the top plate. The bias regulators for the 805A tubes are available for bias adjustment on the top plate.
The Cayin Jazz 100 is also equipped with a Hum Balance, for the 805A tube. This is, if necessary, accessible on the top plate for easy adjustment of the hum level of the Power Tubes.
High-voltage fuses are used for protection in the amplifier. In the event of a malfunction in the tubes, the fuse will first respond so that you can easily know where the problem is.
The Jazz 100 is also equipped with an NFB – Negative feedback selection and is available on the top plate. With the NFB switch that allows you to choose between high and low NFB to enjoy the different sound outputs of the Jazz 100 tube amplifier.
Anodized aluminum front, fully ventilated chassis with excellent beautiful workmanship, handcrafted construction with the finest point-to-point wiring.
Premium parts: Alps volume control, porcelain tube connections, audio quality capacitors and carbon film resistors, power supply ring converter, wide-band EI output transformer, etc.
The Jazz 100 is standard with remote control and can remember the last action of the device after it is turned off.
Soft start circuit and High Voltage Delay to protect the amplifier for longer tube life.

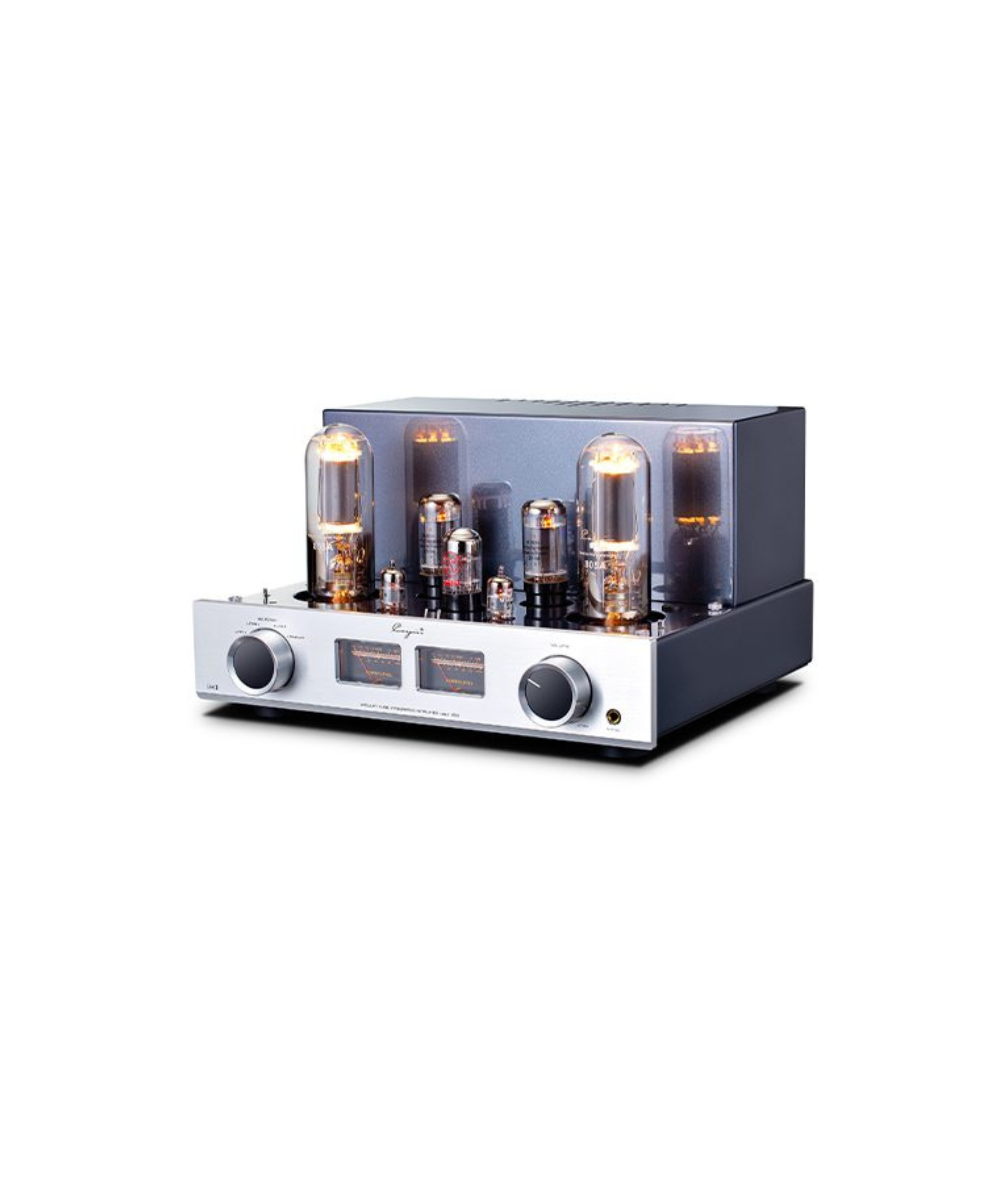

Available finish on the front: Silver and Black.
Technical Data:
Output power: 46W + 46W
Frequency range: 12Hz ~ 33KHz (-3dB)
THD: 0.2% (1W/1kHz)
S/N ratio: 90dB (A-weighted)
Incoming sensitivity: 320mV
Input Impedance: 100kΩ
Output Impedance: 4Ω, 8Ω
Maximum power consumption: 410W
Tube: 6JC6×2, 6SN7×1, 6L6×2, 805A×2
Headphone Output Impedance: 16Ω~300Ω
Intat connector: LINE1, LINE2, LINE3, Bluetooth
Bluetooth version: V5.0
Bluetooth chip: QCC5125
High-fidelity DAC chipset: ES9018K2M SABRE32
Audio Format: UAT, LDAC, apt-X, apt-X HD, apt-X Low latency, SBC, AAC
Effective range: ≤10M
W×D×H: 420mm×389mm×248mm
Net weight: 35kg
