The new Cayin CS-100DAC from Cayin is a fantastic high-end DAC with all the features and sound quality you can get from a digital device.
The CS-100DAC features two ESS ES9038Pro DAC chipsets and can decode up to DSD512 and 32 bit / 768 kHz. You have the option to choose between 7 digital PCM filters and 4 digital DSD filters to refine the sound signature for different music genres or even specific music files.
The CS-100DAC comes with six digital inputs, including an I2S port with HDMI connector. Cayin has also implemented a true audiophile preamplifier, allowing a simple sound system to which you can easily connect active speakers or power amplifiers, for example.
Switch the CS-100DAC to Pre-mode, connect a apper with source and enjoy the finest quality
To deliver a natural and musical display, Cayin has installed two extremely low-noise precision crystal oscillators in the CS-100 DAC. With an RMS phase jitter of only 0.075 s (0,000 000 075 seconds), these are the lowest jitter solutions that Cayin has implemented to date.

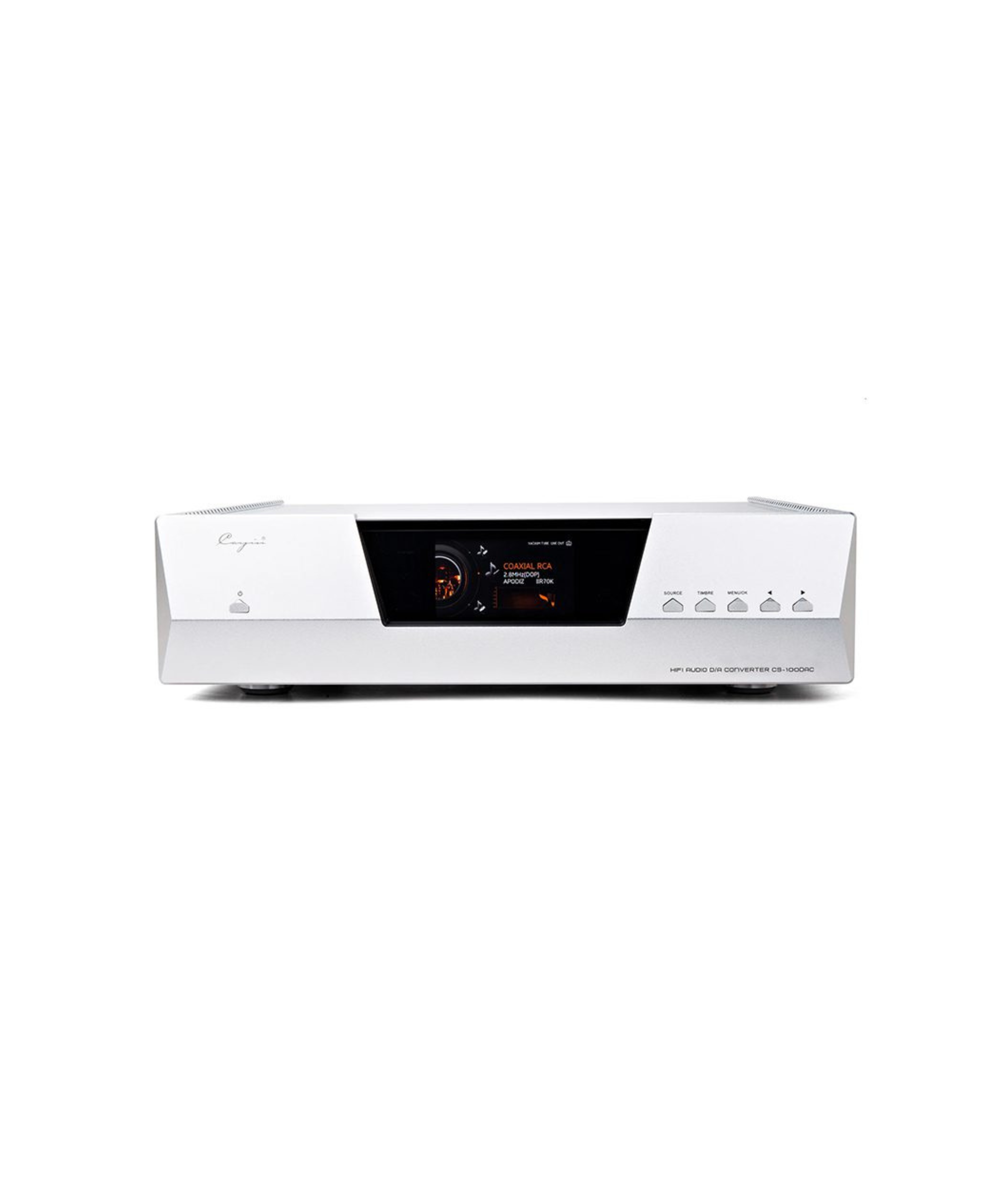

With a 3.95-inch AMOLED color screen, the information about import, output and business status of the CS-100 DAC is wonderfully visible. A remote control is included as standard, so you can quickly and easily select sources, adjust the volume and change digital filters remotely.
Technical Data:

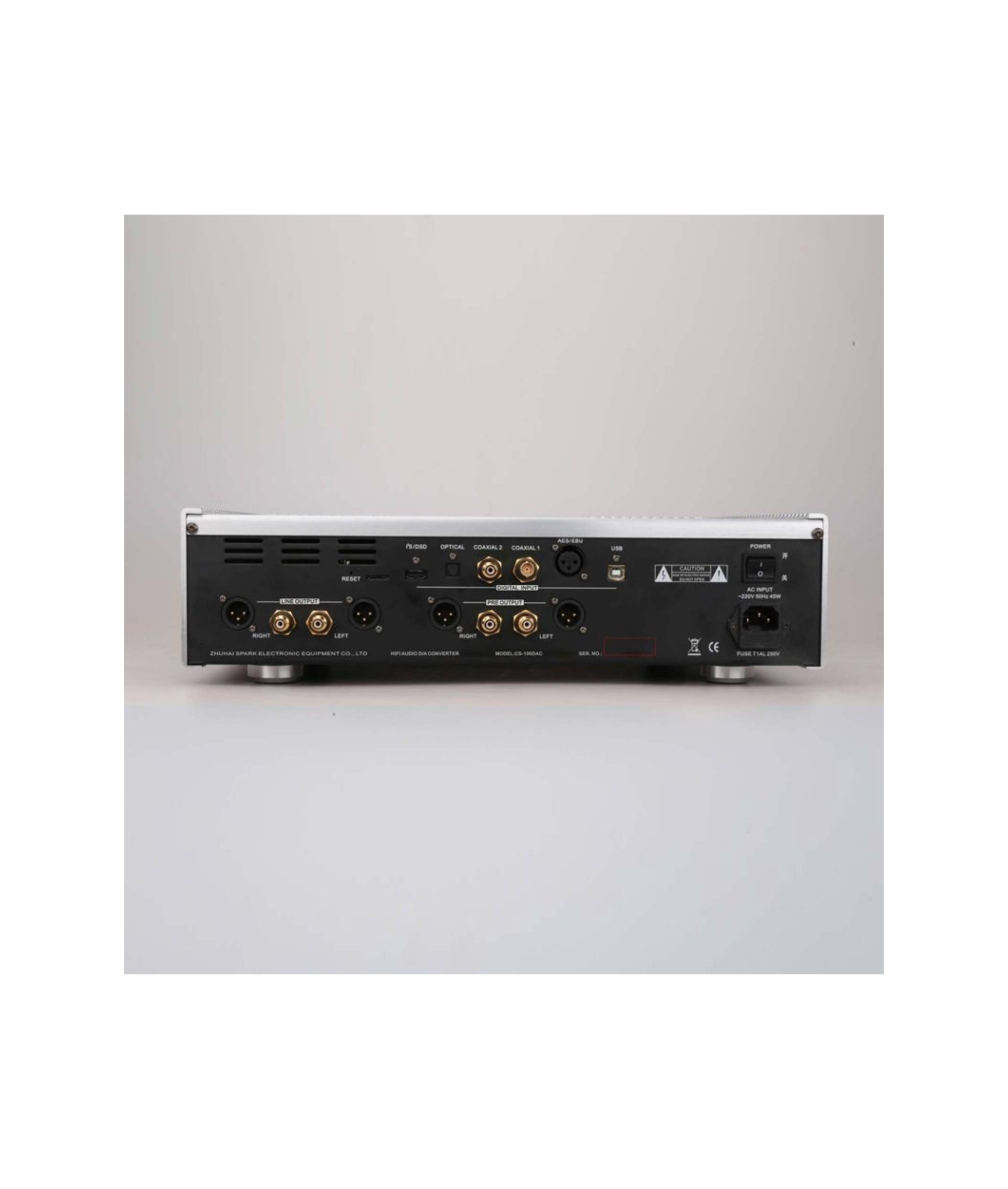

DAC CHIP 2 x ES9038PRO DIGITAL INPUTSI²S/DSD, USB Audio, AES/EBU, 2xCoax & Optical
ANALOG OUTPUTSLine out: RCA and XLR Pre out: RCA and XLR
SCREENAMOLED-3.95′′ EXTERIOR MATERIALAluminum
DIMENSIONS440mm x 392mm x 126mm (WxDxH)
WEIGHTapprox. 12 kg
