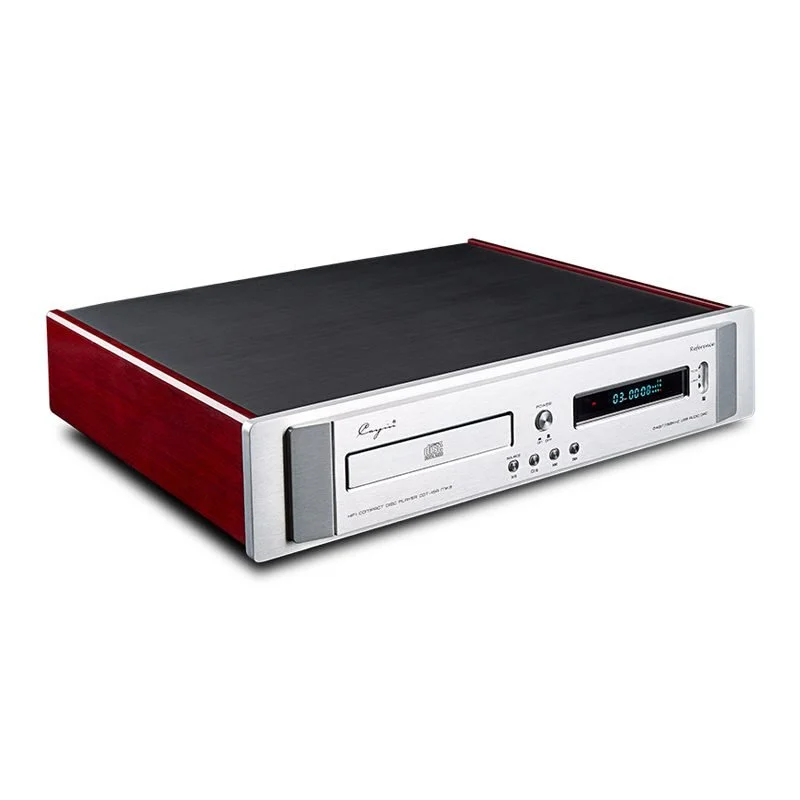

The Cayin CDT-15A Mk2 from Cayin not only offers an elegant design, but also a solid construction and the addition of musical pleasure. The design corresponds to their A-300B Mk2 integrated tube amplifier (check it out here), which by the way wouldn't be a bad pair at all if you needed a new amplifier.
The DAC chip itself is the model CIRRUS LOGIC CS4398, the brain of the machine. In addition to converting the digital signal from the CD, it also has the ability to use the USB input on the back, so that you can, for example, connect your computer and play music from different sources. USB supports signals up to 24bit/192kHz, in case you are tempted to try high-res audio files or streaming.
There are also two digital outputs (optical and coaxial), so that the player can be used as a means of transport, where the signal is transmitted to another digital device which is then converted.
Of course a nice remote control is included

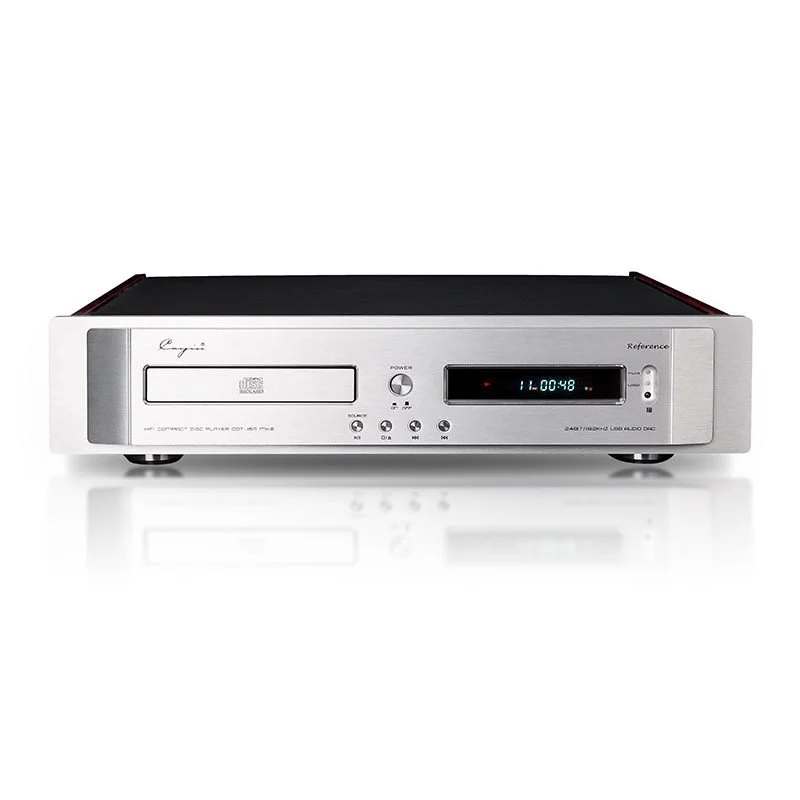

Double aluminum panels, dynamic VFD display, luxurious and elegant styling.
Used by the American company BB PCM1792 chip for digital filtering and D/A conversion.
Low-through filter circuit with special National Semiconductor LME49710 audio opamp.
Analog audio outputs using two separate tubes or transistors tune the sound circuit, tube output circuit with Amperex JAN 6922 from the US,
transistor output circuit selected carefully selected and combined with high-quality capacitors FET.
Optical and coaxial digital signal output.
Machine specially developed for the use of a teroidal core transformer with low magnetic leakage and high efficiency.
Built-in high-fidelity USB DAC, using USB2.0 high-speed interface, support for asynchronous clock, digital audio up to 24bit/192kHz.
Common functions with remote control of the type SP-13G, remote control of the company while the power amplifier.
Technical Data:
FREQUENCY RANGE 20Hz-20kHz ±0.5dB S/N RATIO90dB
TUBE TYPE2 x 6922EH
DIGITAL INPUTUSB DAC (Audio class 1.0 & Audio class 2.0)
DIGITAL OUTPUTCoaxial and optical
BIT SPEEDUSB DAC: 16-24 bit
CD player: 16 bits
SAMPLING FREQUENCYUSB DAC: 44.1 kHz – 192 kHz
CD player: 44.1 kHz
DIMENSIONS440mm×350mm×100mm (WxD×H)
WEIGHT10 kg
