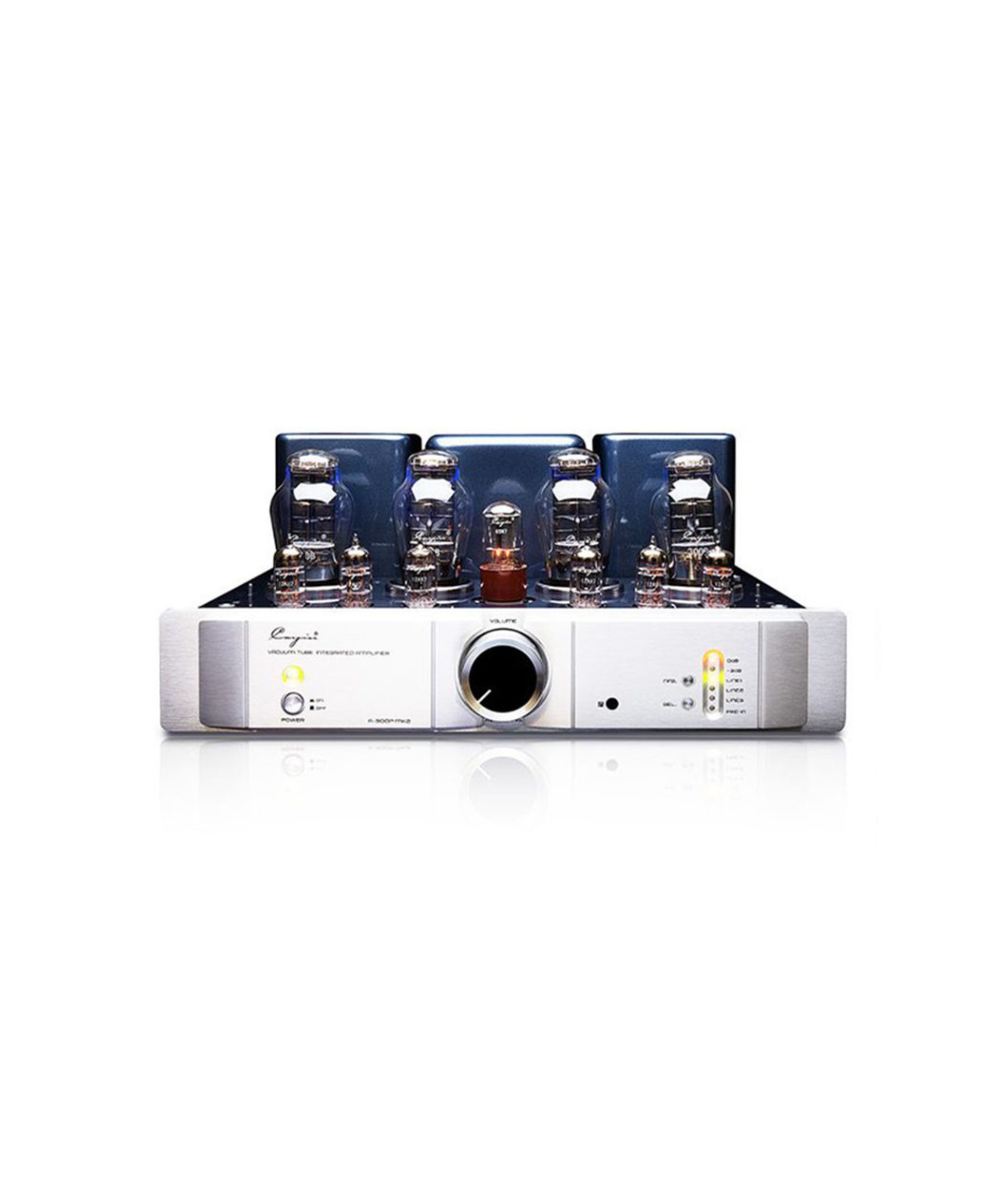

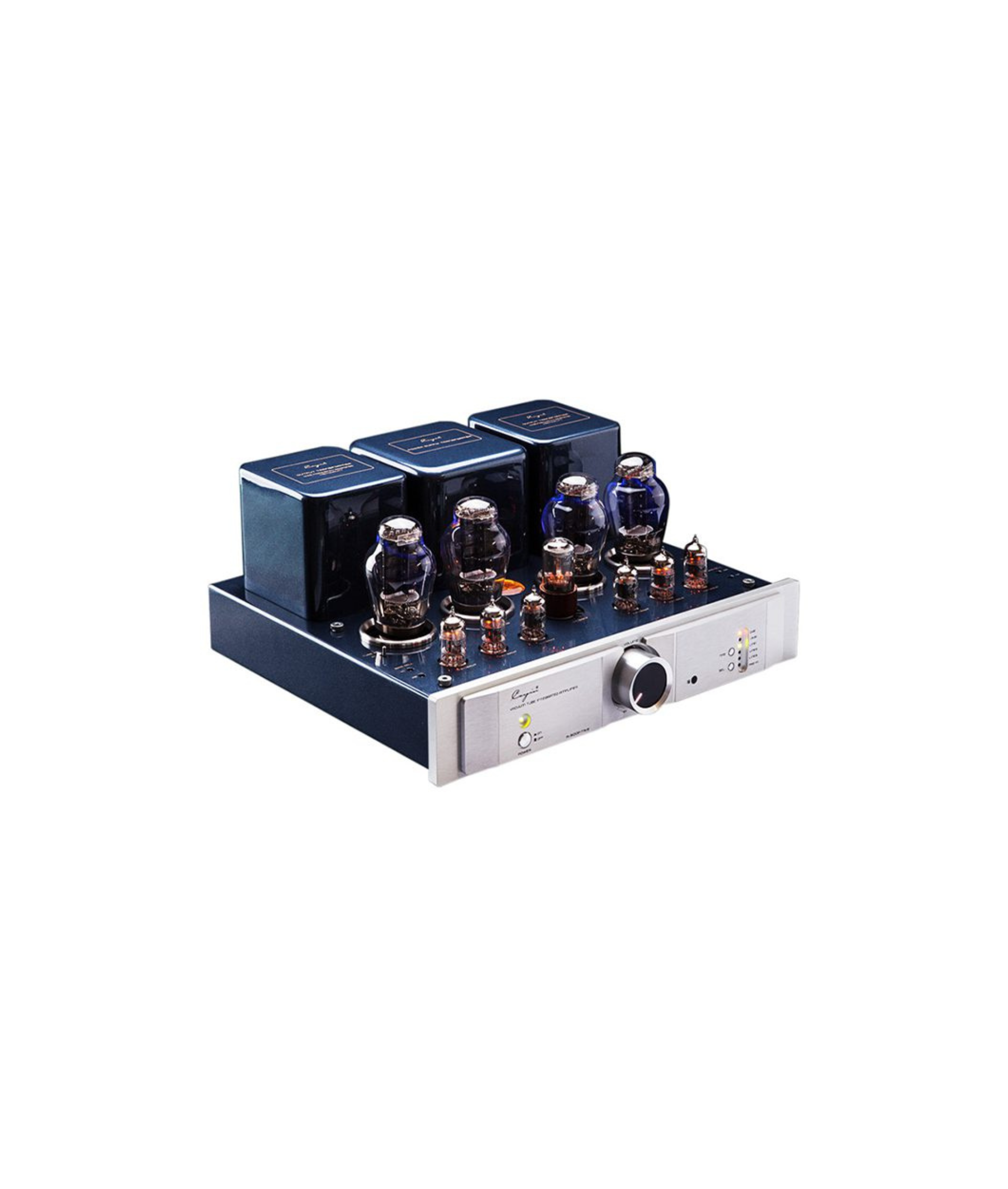

Cayin A-300P MK2. Finally a chance to enjoy the legendary sound of 300B tubes without exceeding your budget. Four 300Bs are used for pure Class A push-pull-amplification, while two manually modified 12AX7EHs and two 12AU7EHs are used for the preamplifier strades. In addition, there is one SOVTEK 5AR4 used for rectification tasks.
The twring core transformer and EI audio transformers are specially manufactured for low magnetic leakage, wide frequency response and low impedance. As with any Cayin amplifier, this integrated amplifier is completely handcrafted and has a fully tube, point-to-point wired design. A remote control is also included for complete convenience.
The Cayin A-300P MK2 is hand-built with extreme attention to detail, including point-to-point wiring. Point-to-point was in fact the way the very best amplifiers were manufactured in the 1950s and 1960s, when costs were not the primary goal. Nowadays, almost everything contains circuit boards, while with point-to-point wiring, the amplifier is much more reliable and performs much better. The bottom line is that point-to-point wiring sounds better. It is one of the main reasons why all Cayin amplifiers sound like the classic tube quantities of Marantz and McIntosh.
In today's market, products with point-to-point wiring are normally either very expensive or have a substandard finish – with Cayin you just have the best technique for the best price. There are output taps for 4, 8 or 16 ohms. This allows you to accurately tune the sound you want. Switching is easy and listening to the differences is a lot of fun.
Technical Data:
Name/model A-300PMK2 Output Power20W+20W
Machine frequency response7Hz～50kHz(-3dB) Harmonic distortion≤1%(1kHz)
Output impedance4Ω, 8Ω, 16Ω input resistance 100kΩSNR91dB
Input sensitivity300mV (for integrated input) / 1000mV (for pure post-stage input)
Volume 420mm×389mm×200mm(W×D×H)
Net weight 27 kg
Voltage～220V±5% 50Hz
Power consumption220WUse tube300B×4、6SN7×1、12AU7×4、12AX7×2
